L6

6" Component Kit
Illusion Audio | High-End Mobile Audio / L6

DETAILS

6 Inch Component Kit – Black polypropylene cone with rubber surround, cast aluminum basket

SPECIFICATIONS

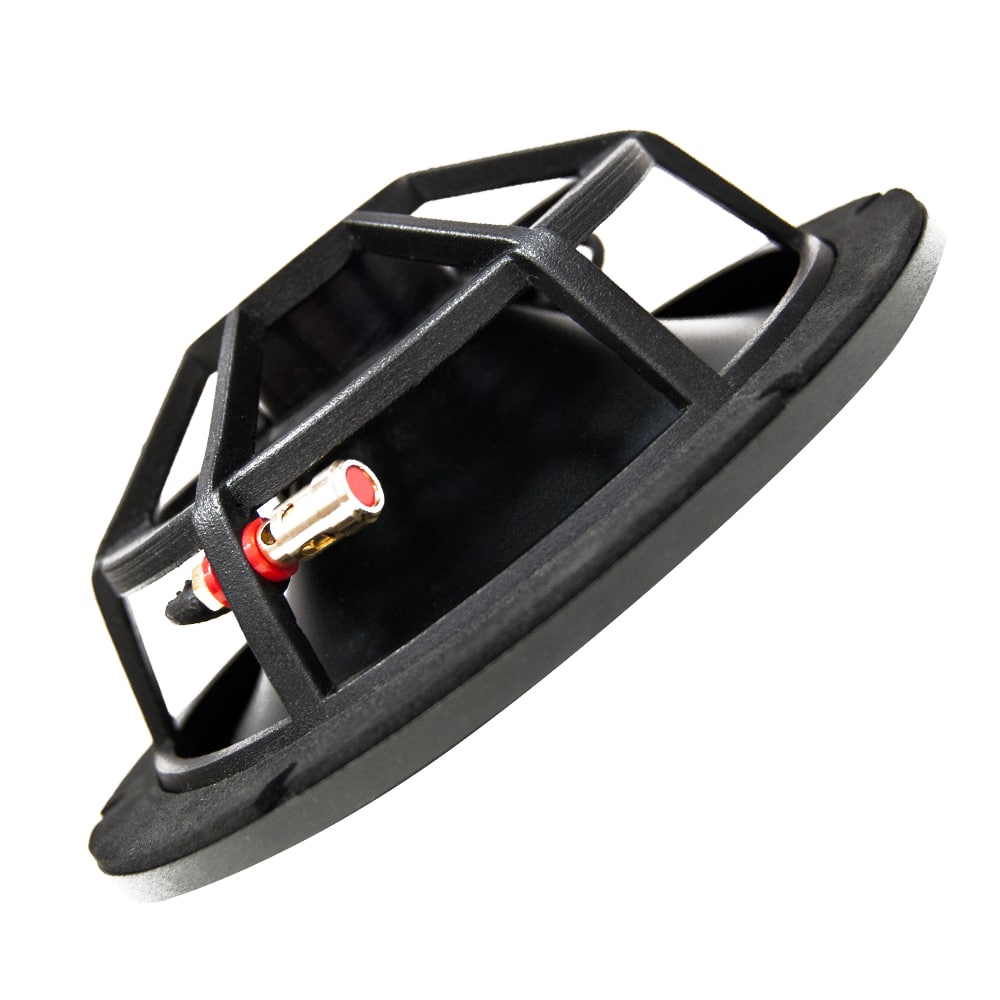

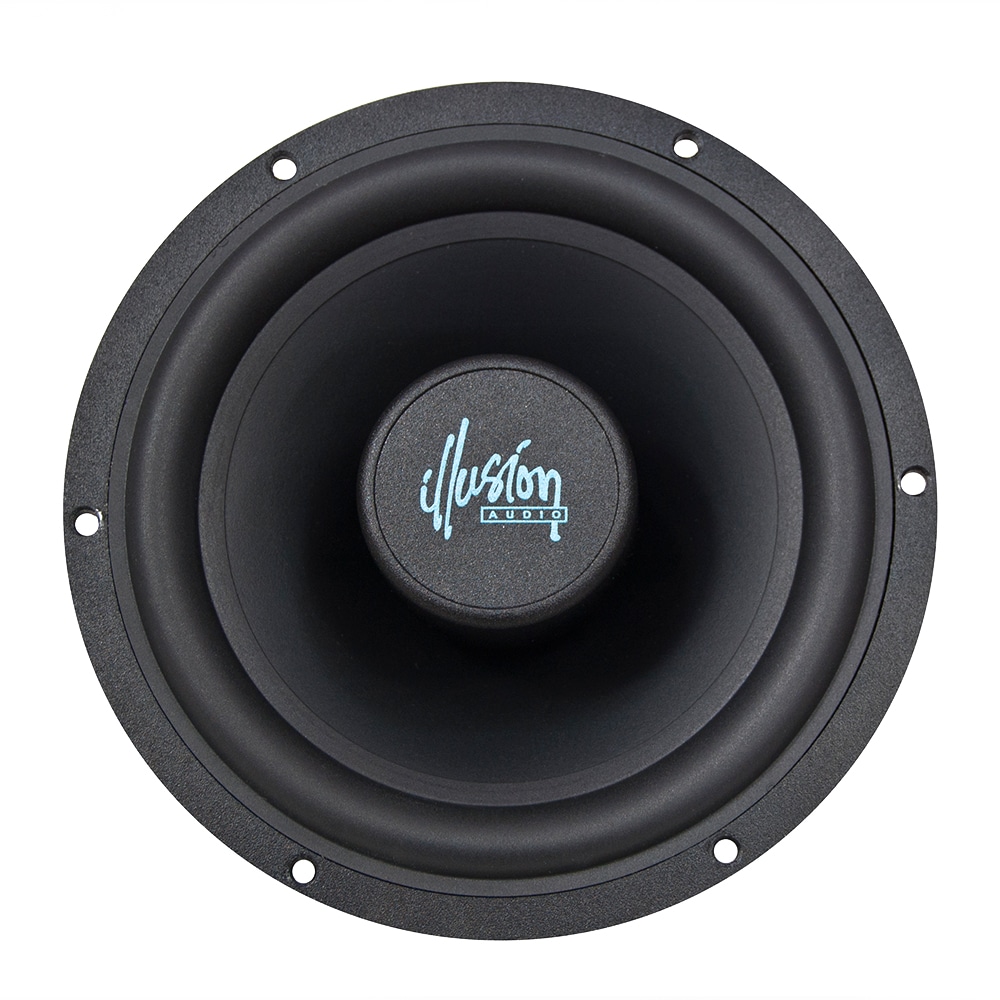

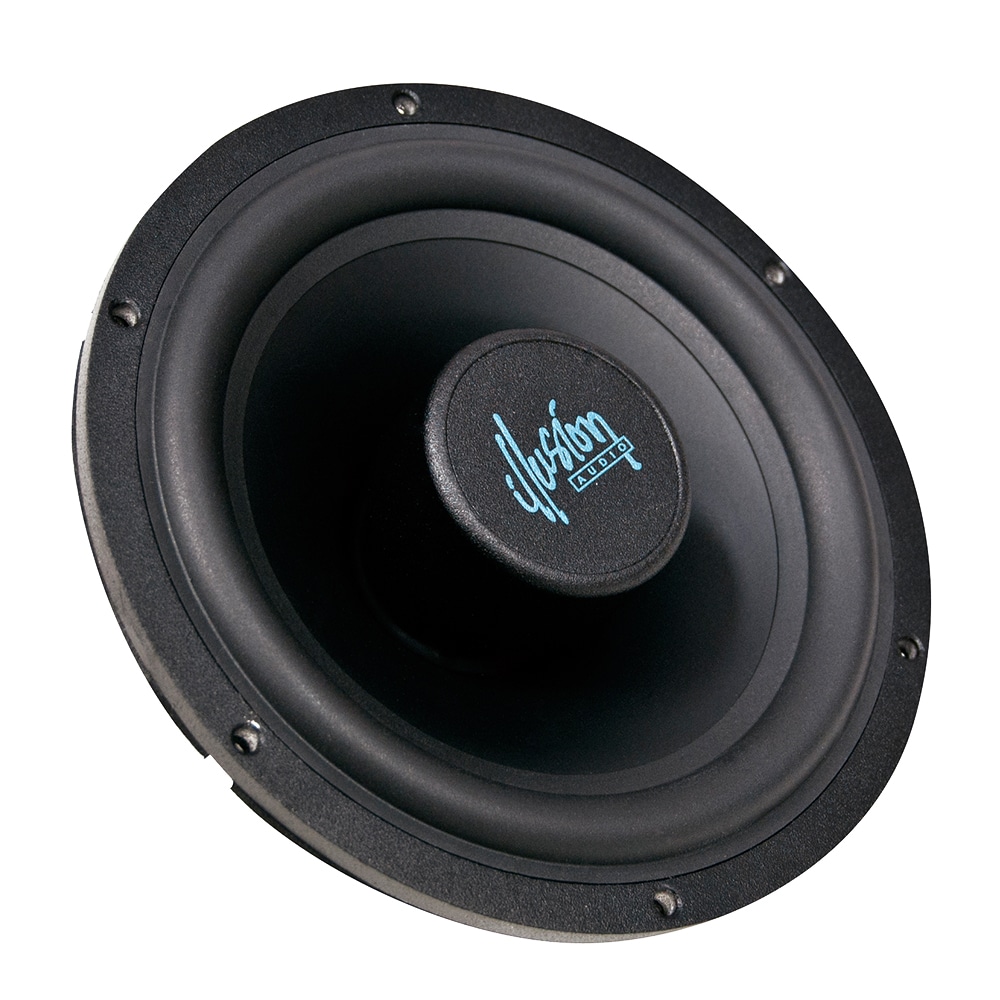

MIDBASS

  • Free Air Resonance: 64.78 Hz
  • Nominal Impedance: 4Ohmz
  • Sensitivity 2.83 v @ 1 meter : 88.7
  • Outside Diameter: 166.5 mm
  • Mounting Hole Diameter: 137.4 mm
  • Mount Depth: 53.3 mm
  • Maximum Linear Excursion: ± 5 mm

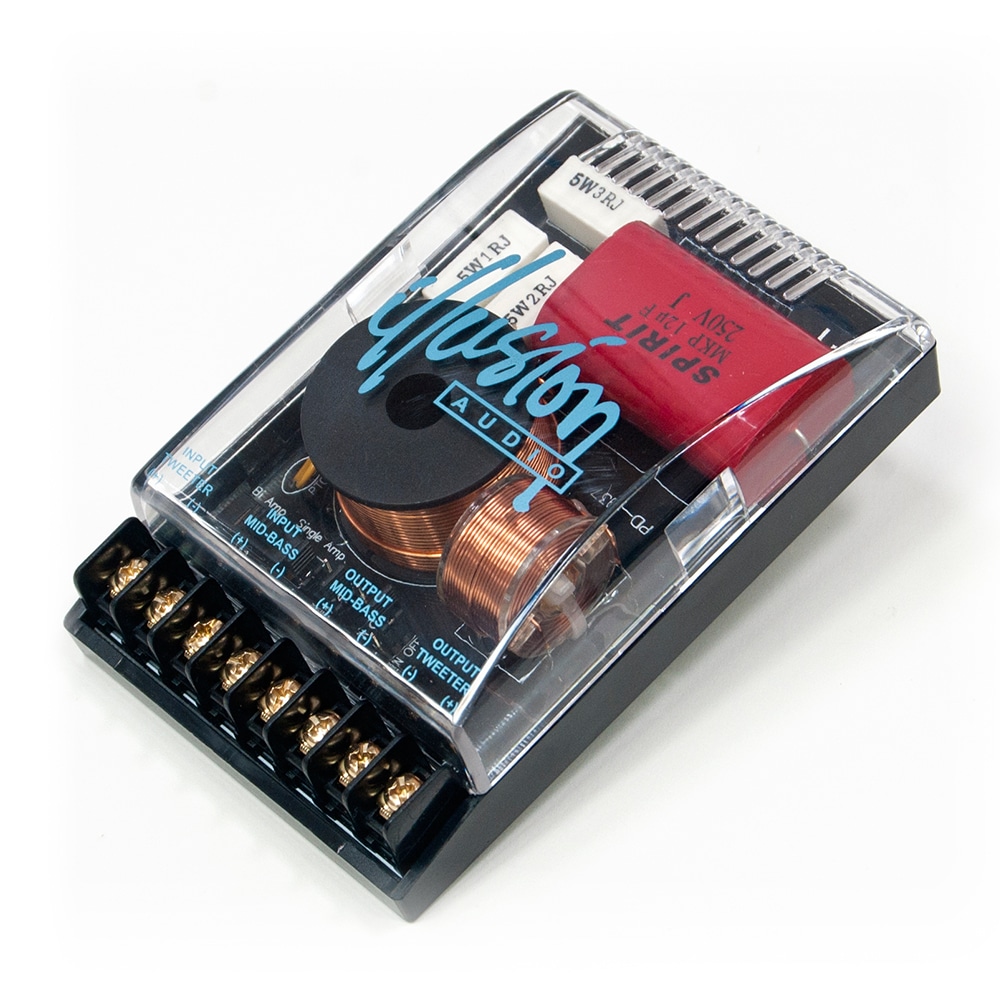

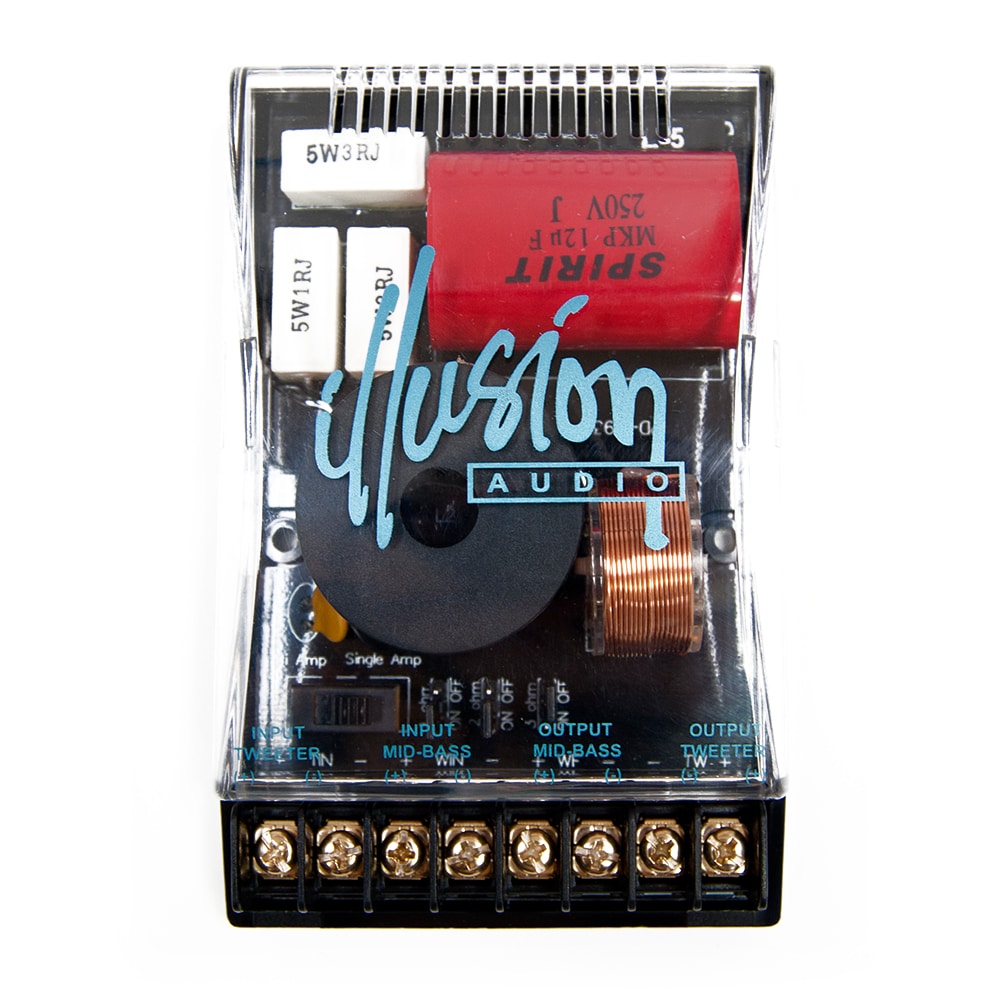

CROSSOVER

  • Bi Amp 12 dB crossover
  • Tweeter overload protection
  • Dimensions: 131 x 84 x 38 mm

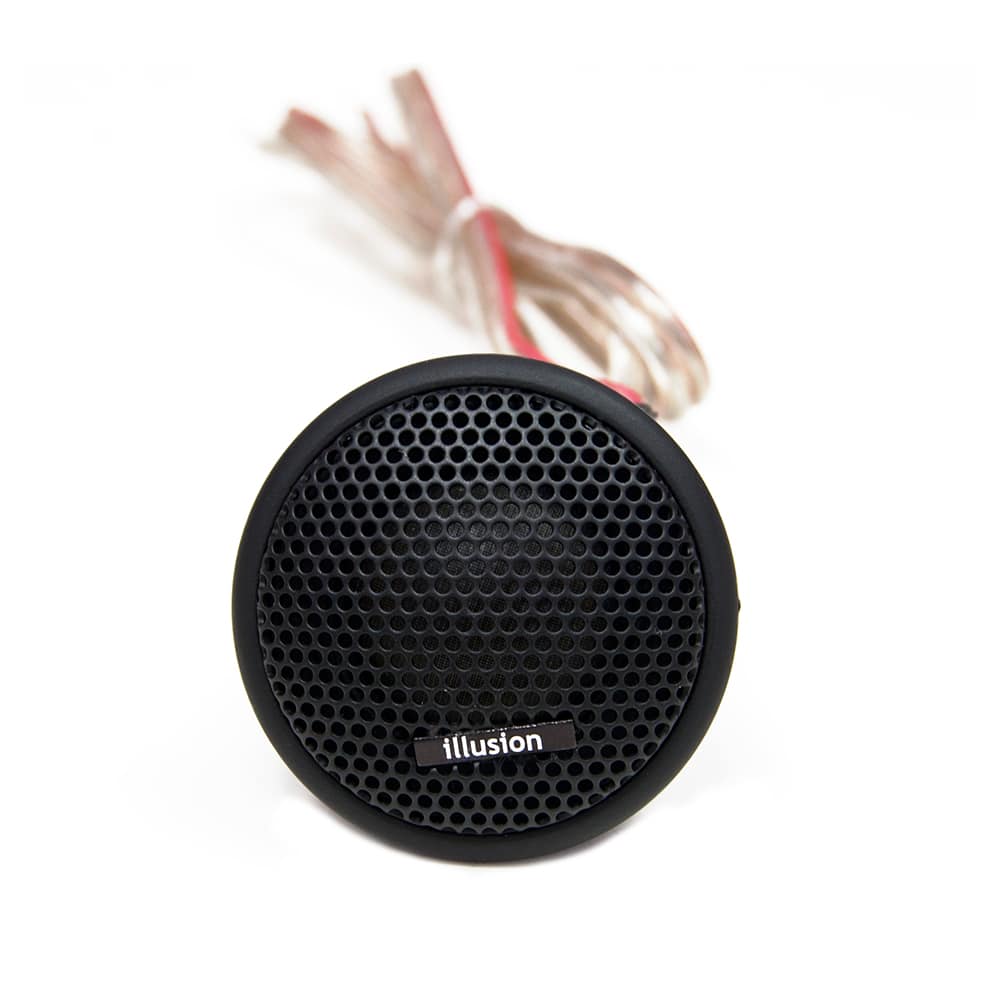

TWEETER

  • Component Tweeter
  • 25 mm Black Aluminum
  • 4 ohm
  • Outside Diameter: 48.2 mm
  • Mounting Hole Diameter: 43.5 mm
  • Mount Depth: 24 mm
