L5
5" Component Kit
Illusion Audio | High-End Mobile Audio
/
L5
DETAILS
5 Inch Component Kit –

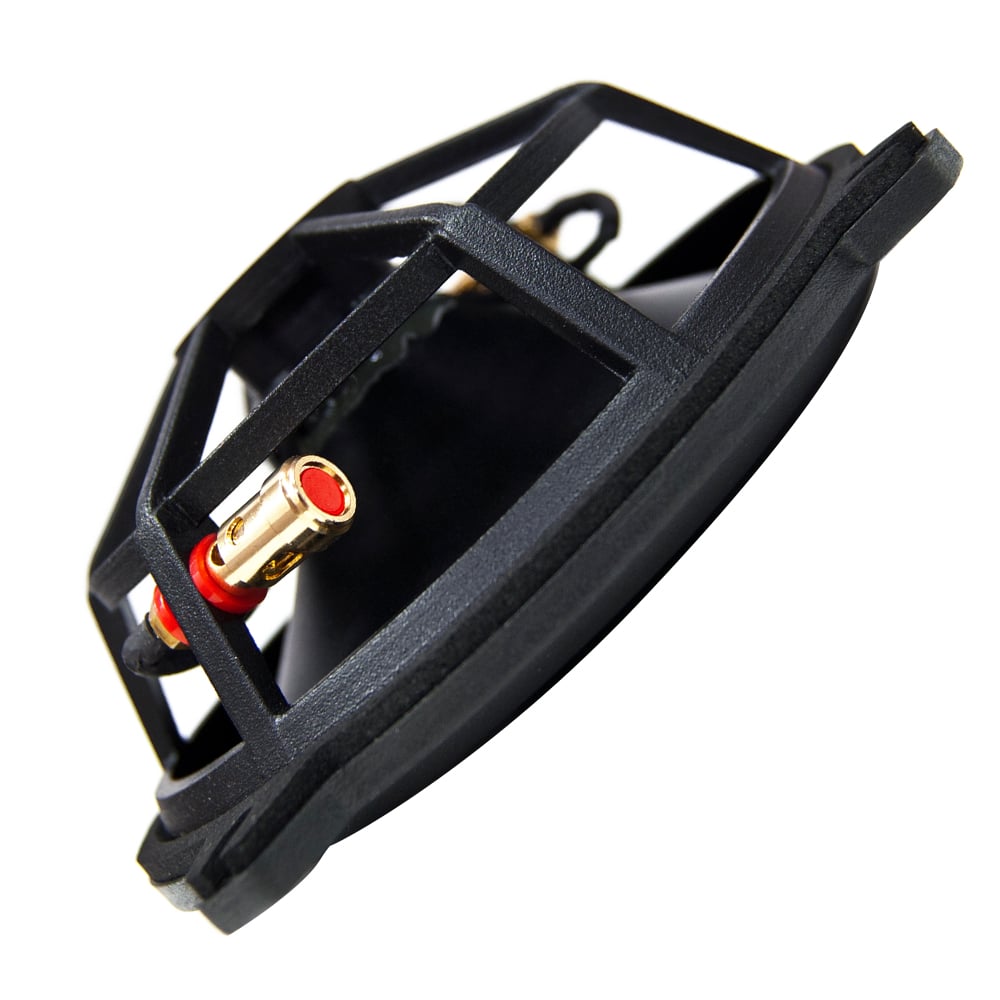

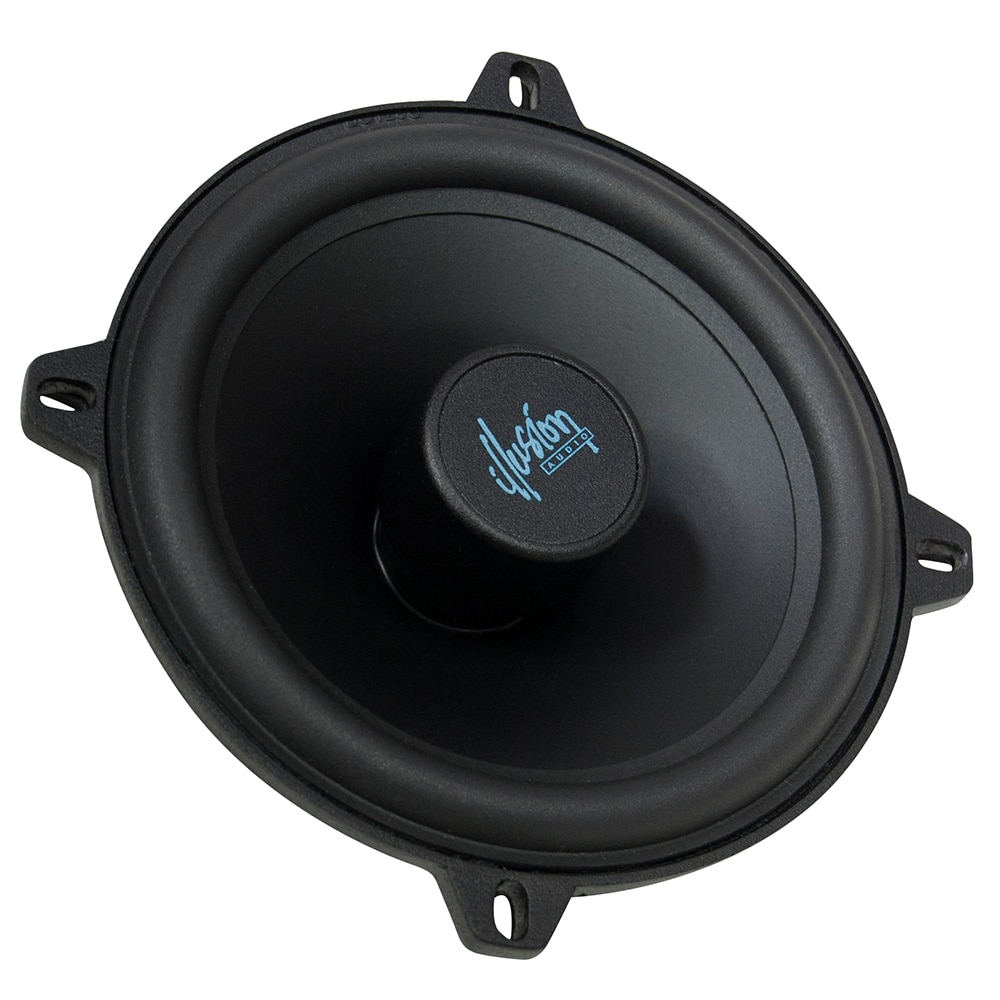

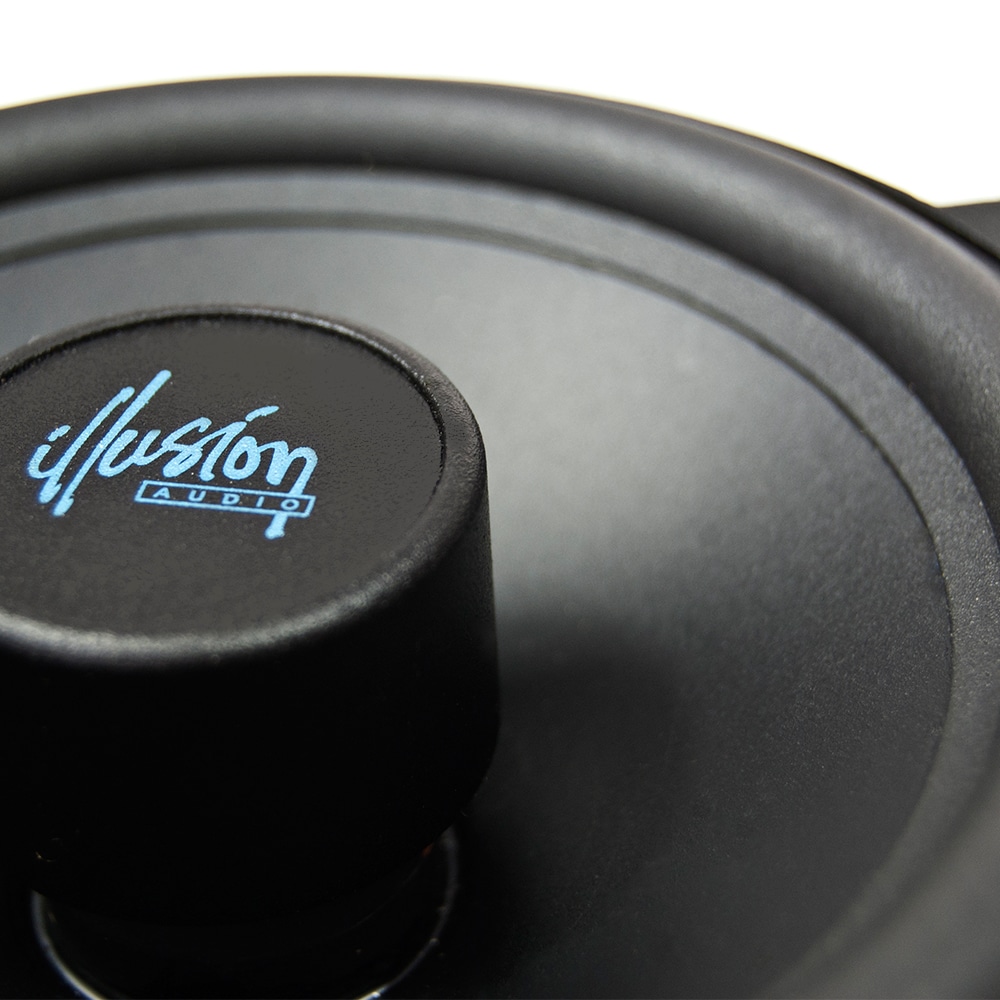

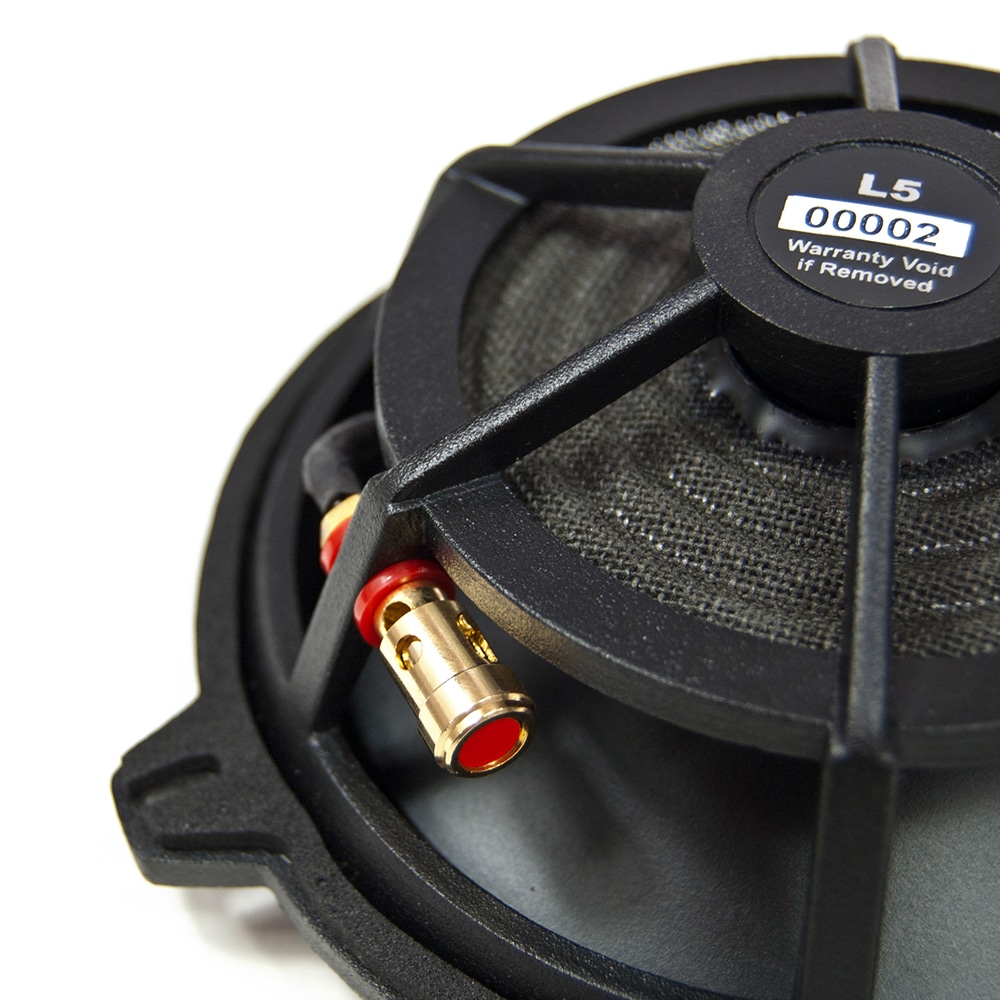

Black polypropylene cone with rubber surround, cast aluminum basket
SPECIFICATIONS
MIDBASS
Free Air Resonance: 81.02 Hz
Nominal Impedance: 4 Ohms
Sensitivity 2.83 v @ 1 meter: 87.5
Outside Diameter: 129 mm basket + 149.2 mm ears
Mounting Hole Diameter: 120 mm
Mount Depth: 43.4 mm
Maximum Linear Excursion: ± 3.5 mm
CROSSOVER
Bi Amp 12 dB crossover
Tweeter overload protection
Dimensions: 131 x 84 x 38 mm
TWEETER
Component Tweeter
25 mm Black Aluminum
4 ohm
Outside Diameter: 48.2 mm
Mounting Hole Diameter: 43.5 mm
Mount Depth: 24 mm
DOWNLOAD
Specification Sheet
Product Manual
Catalogue
