L12

12" Subwoofer
Illusion Audio | High-End Mobile Audio / L12

DETAILS

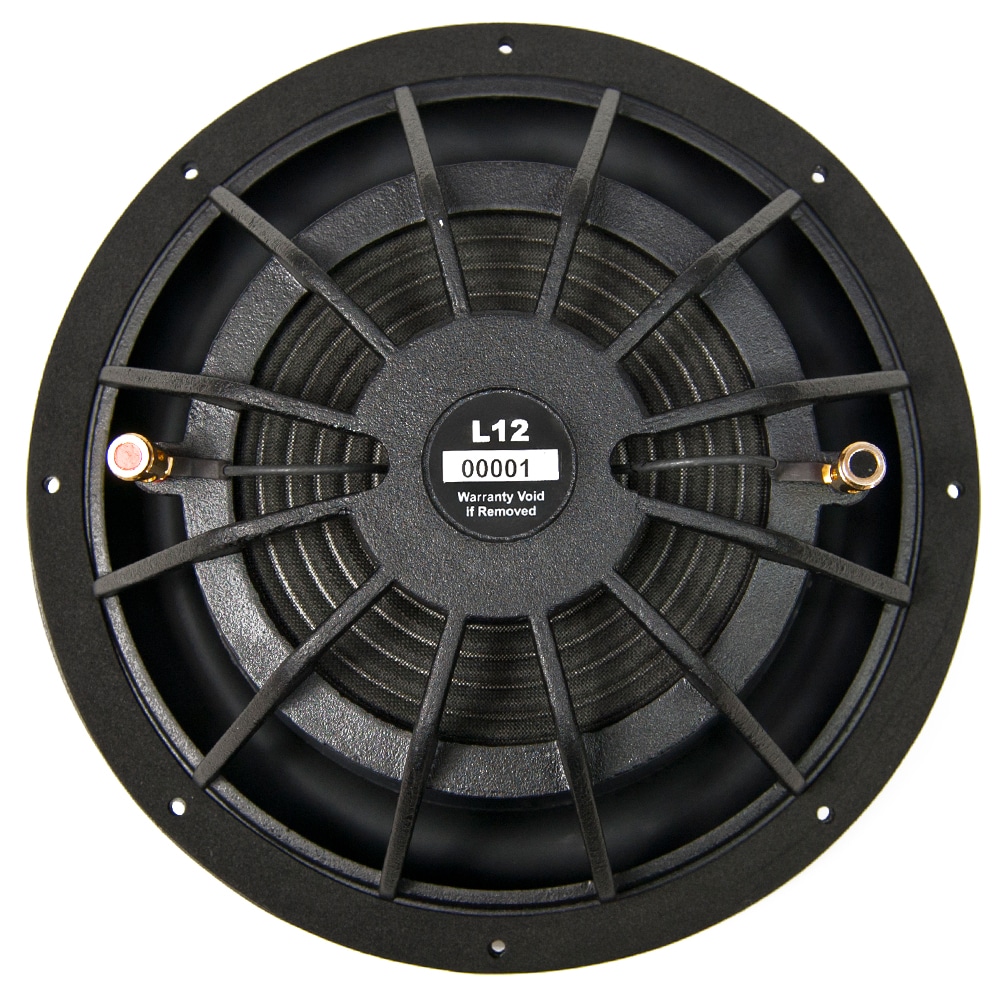

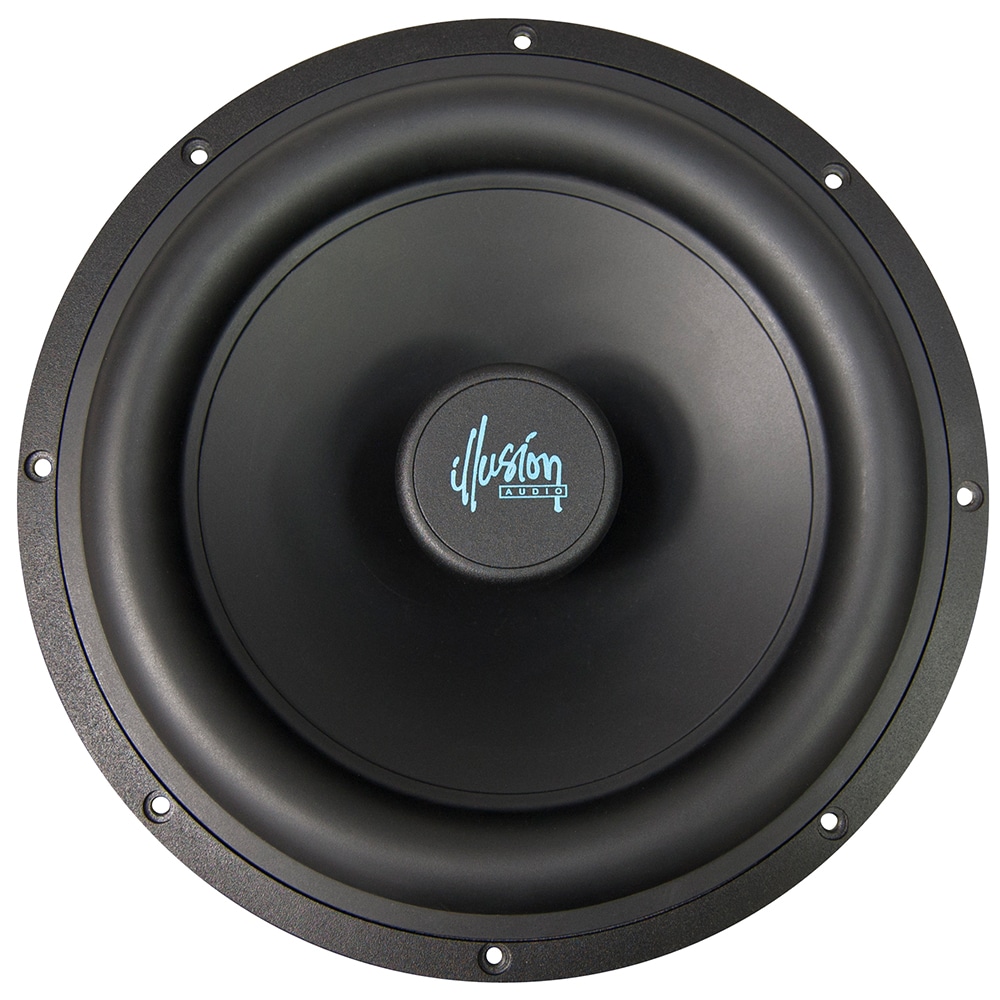

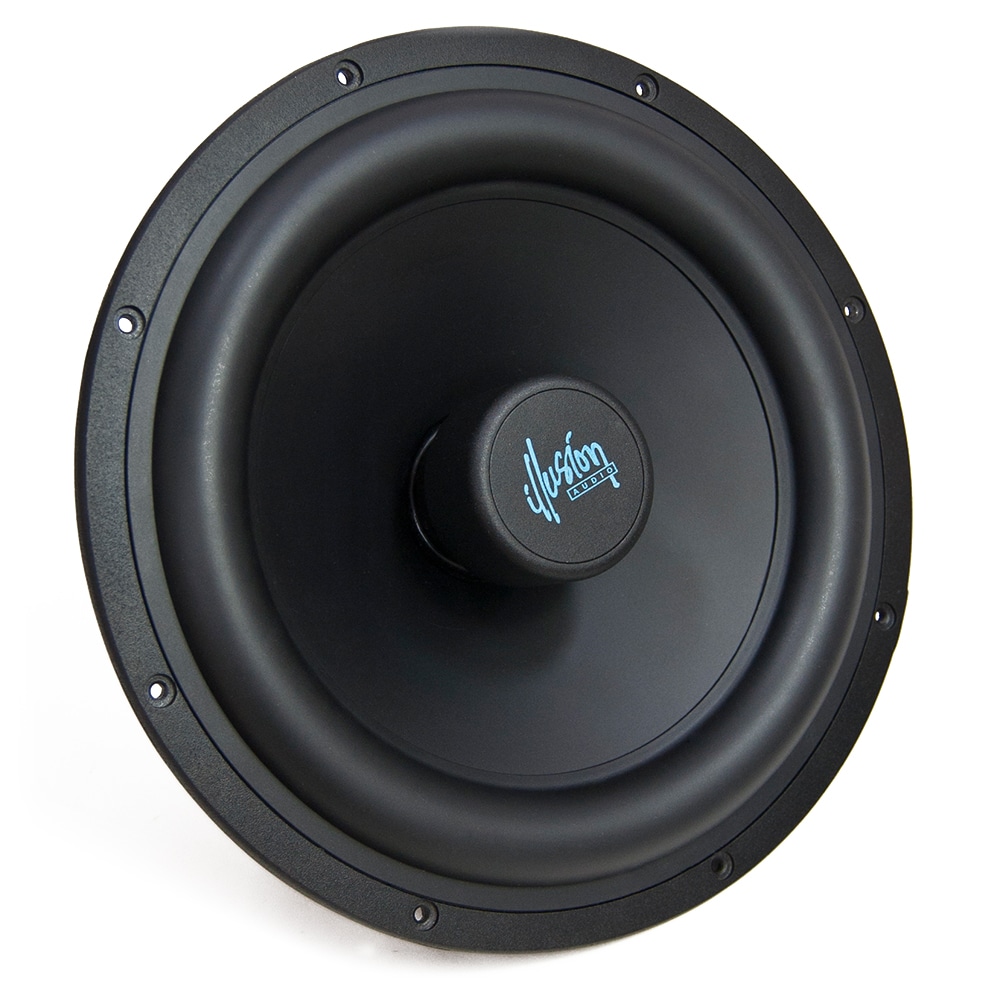

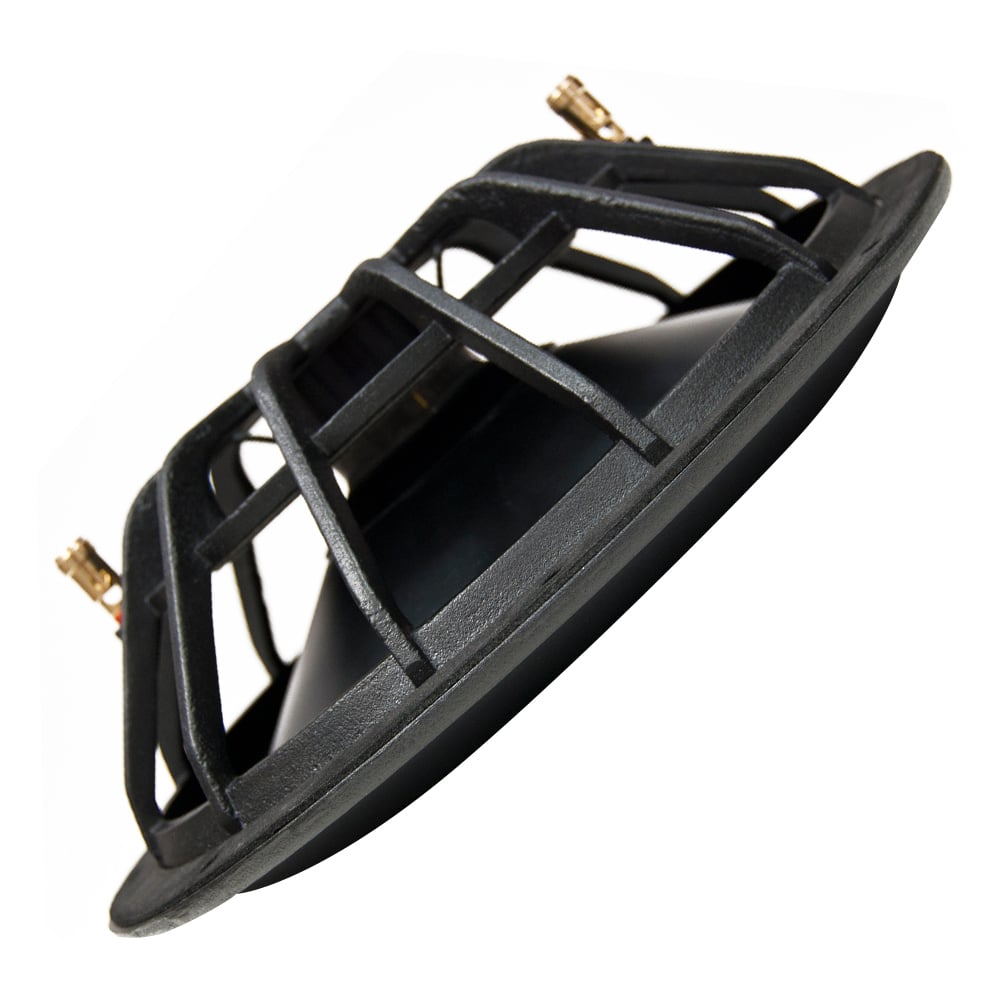

12 Inch Subwoofer – Black polypropylene cone with rubber surround, cast aluminum basket

SPECIFICATIONS

  • Free Air Resonance: 35.26 Hz
  • Nominal Impedance: 4 Ohms
  • Sensitivity 2.83 v @ 1 meter: 89.1
  • Mounting Hole Diameter: 281 mm
  • Mount Depth: 83 mm
  • Recommended Sealed Enclosure Volume: 1.0 ft3
  • Maximum Linear Excursion: ± 7 mm
