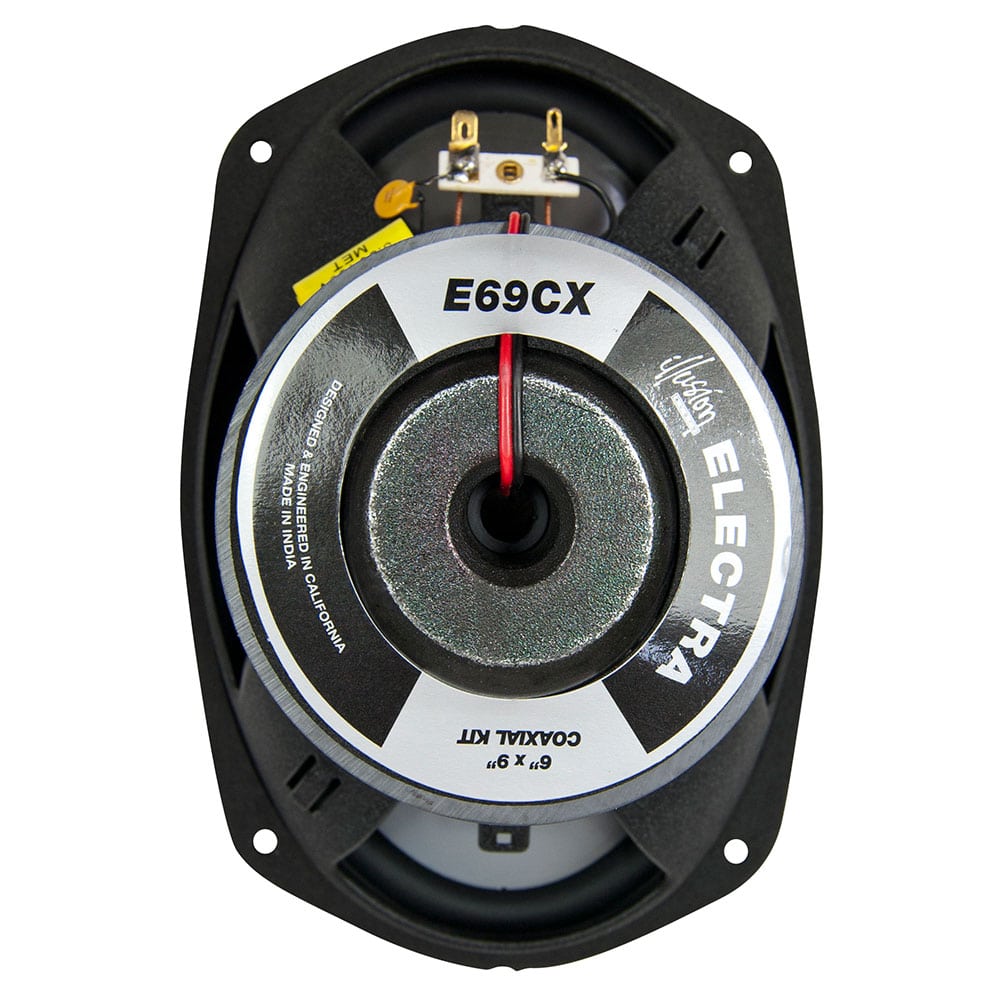

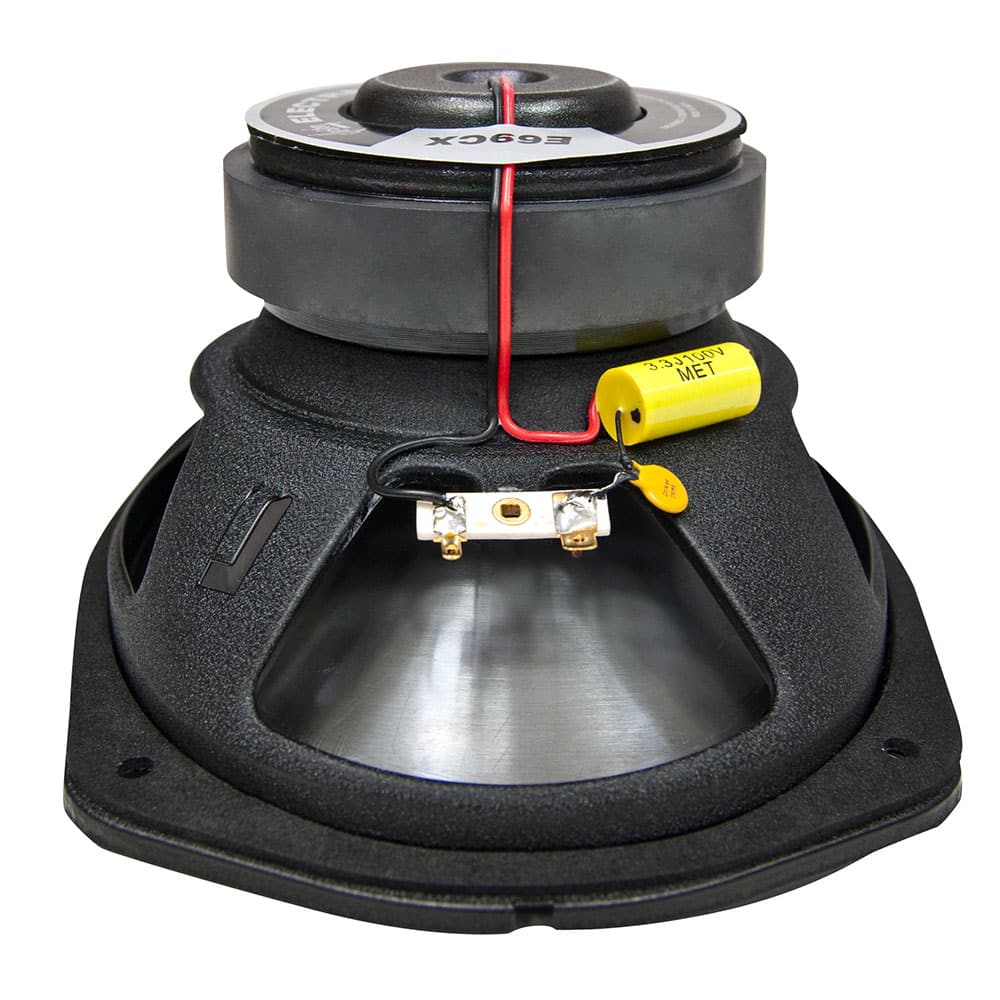

E69CX

6" x 9" Coaxial Kit

DETAILS

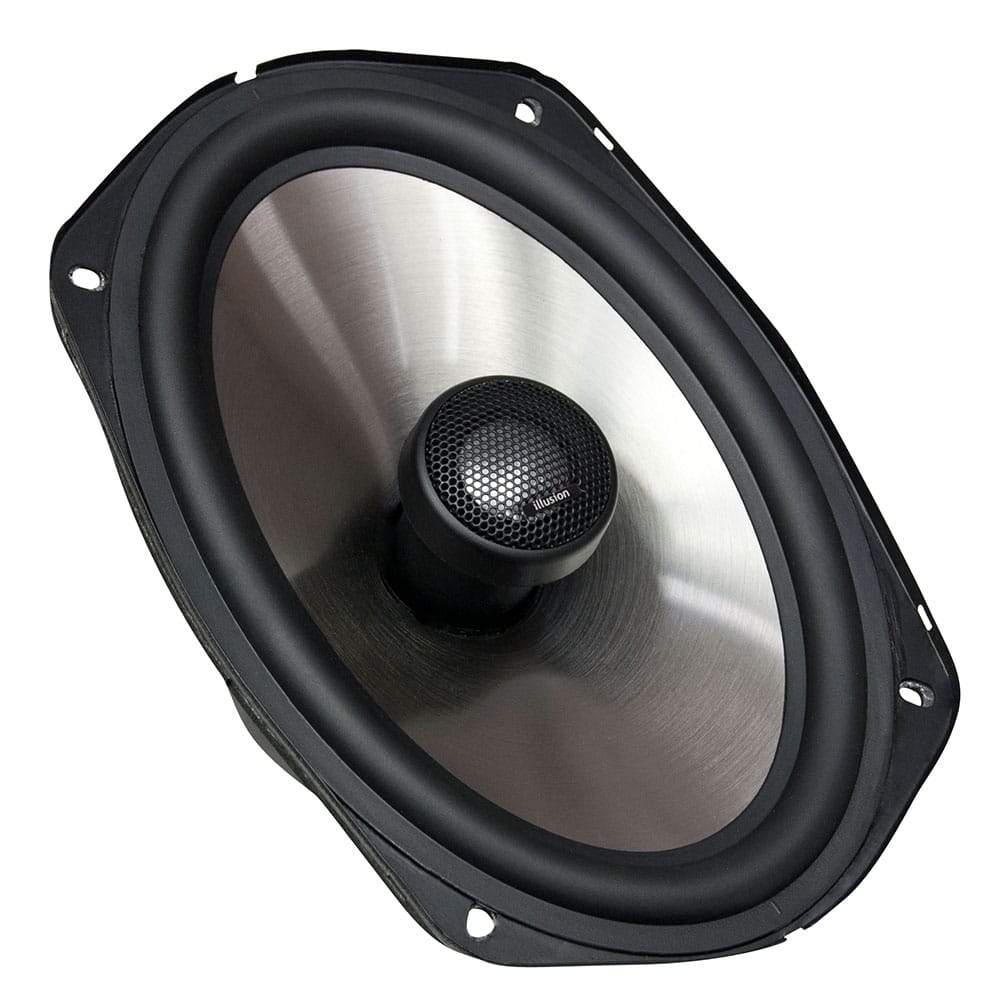

6 x 9 Inch Coaxial Kit –  Aluminum coated injection polypropylene cone with rubber surround powder coated steel basket

SPECIFICATIONS

COAXIAL

  • Free Air Resonance: 50.77 Hz
  • Nominal Impedance: 4 Ohms
  • Sensitivity 2.83 v @ 1 meter: 88.2
  • Outside Diameter: 243 x 173 mm
  • Mounting Hole Diameter: 215 x 147 mm
  • Mount Depth: 93 mm
  • Coaxial Tweeter
  • 4 ohm

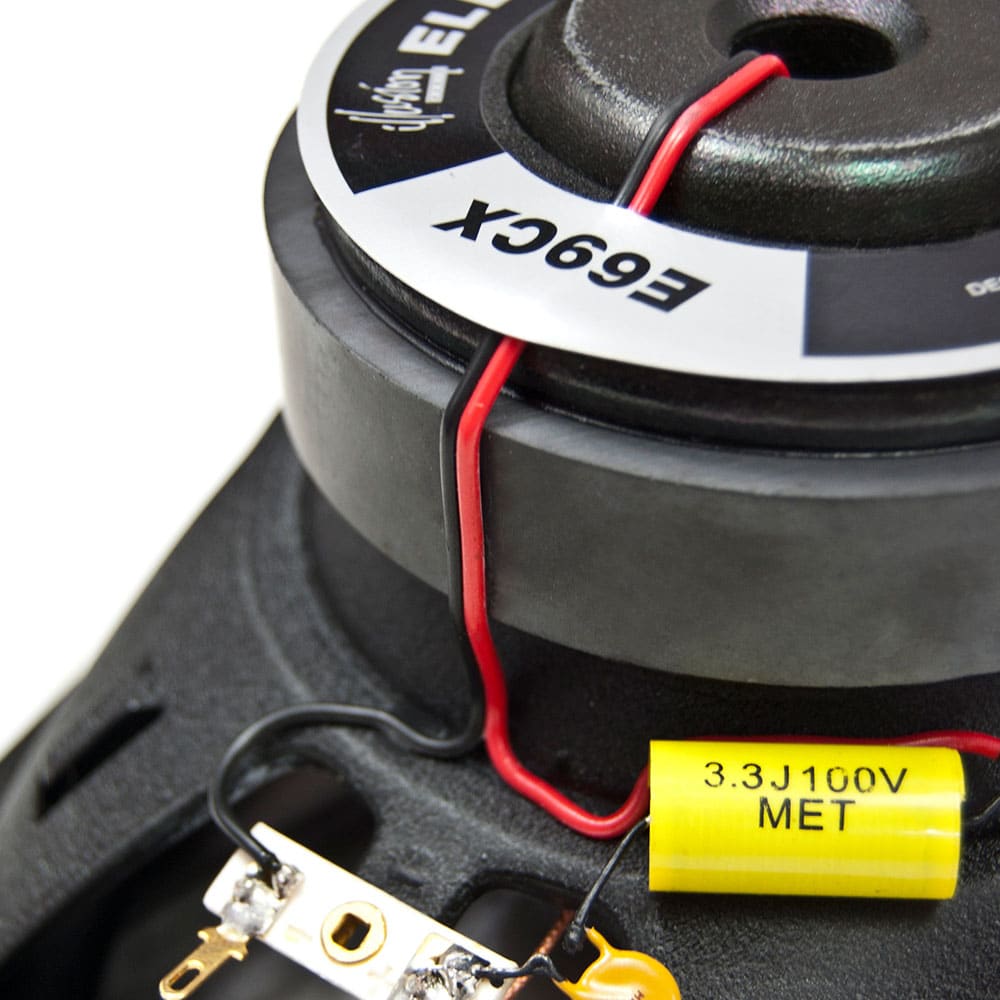

  • Integrated 6dB crossover
  • Polyester capacitor
  • Tweeter overload protection
  • Maximum Linear Excursion: ± 5.5 mm
