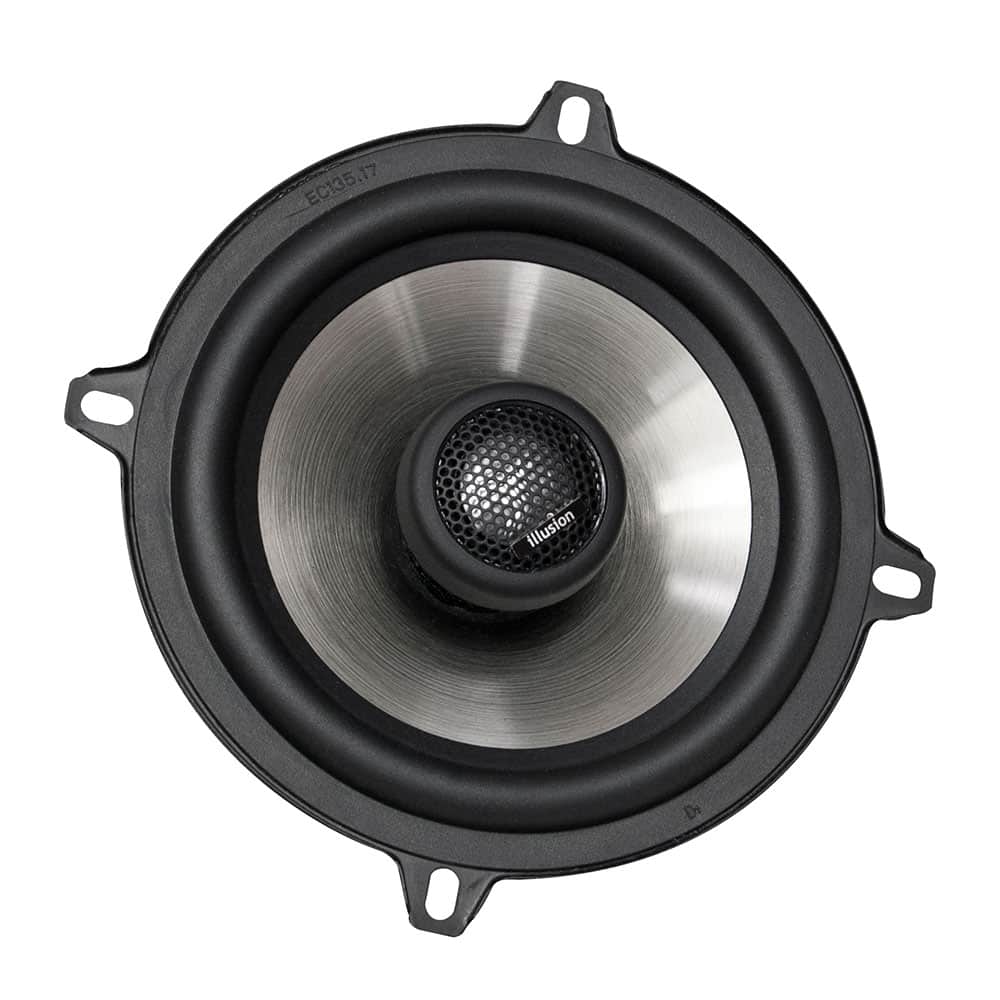

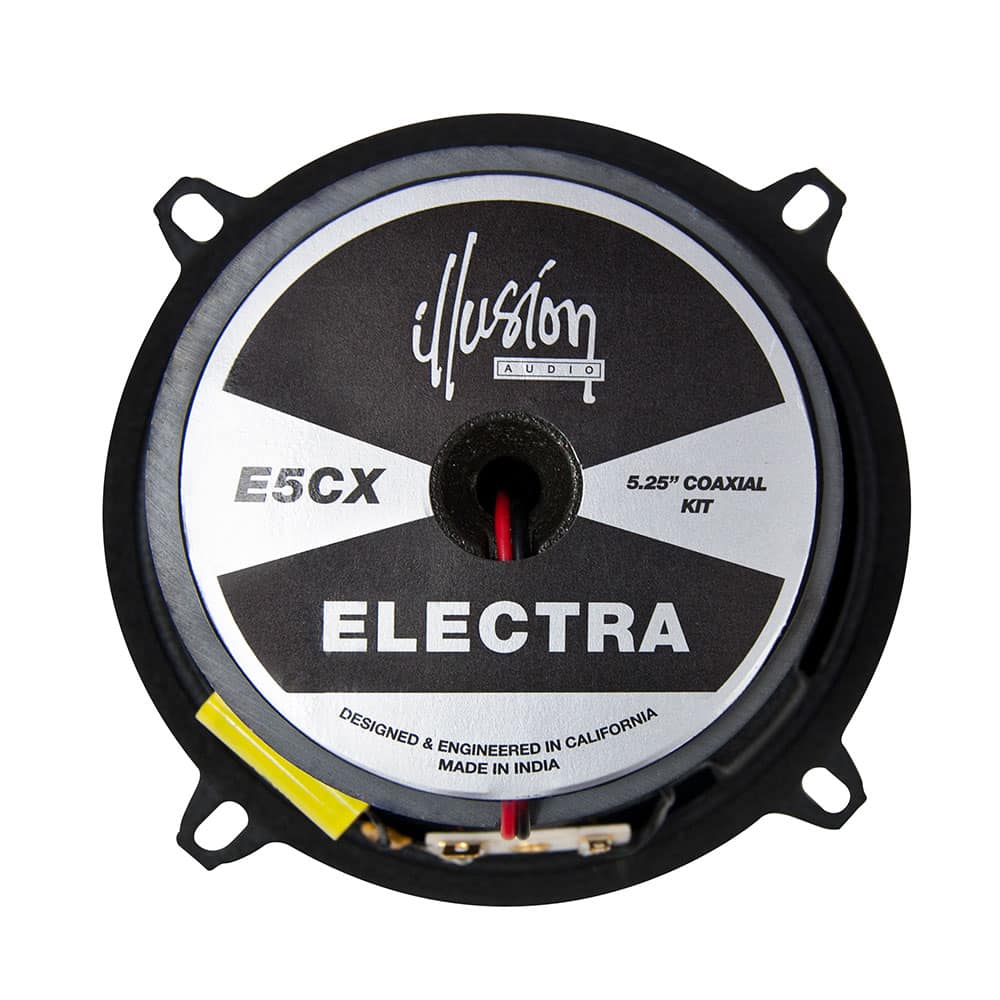

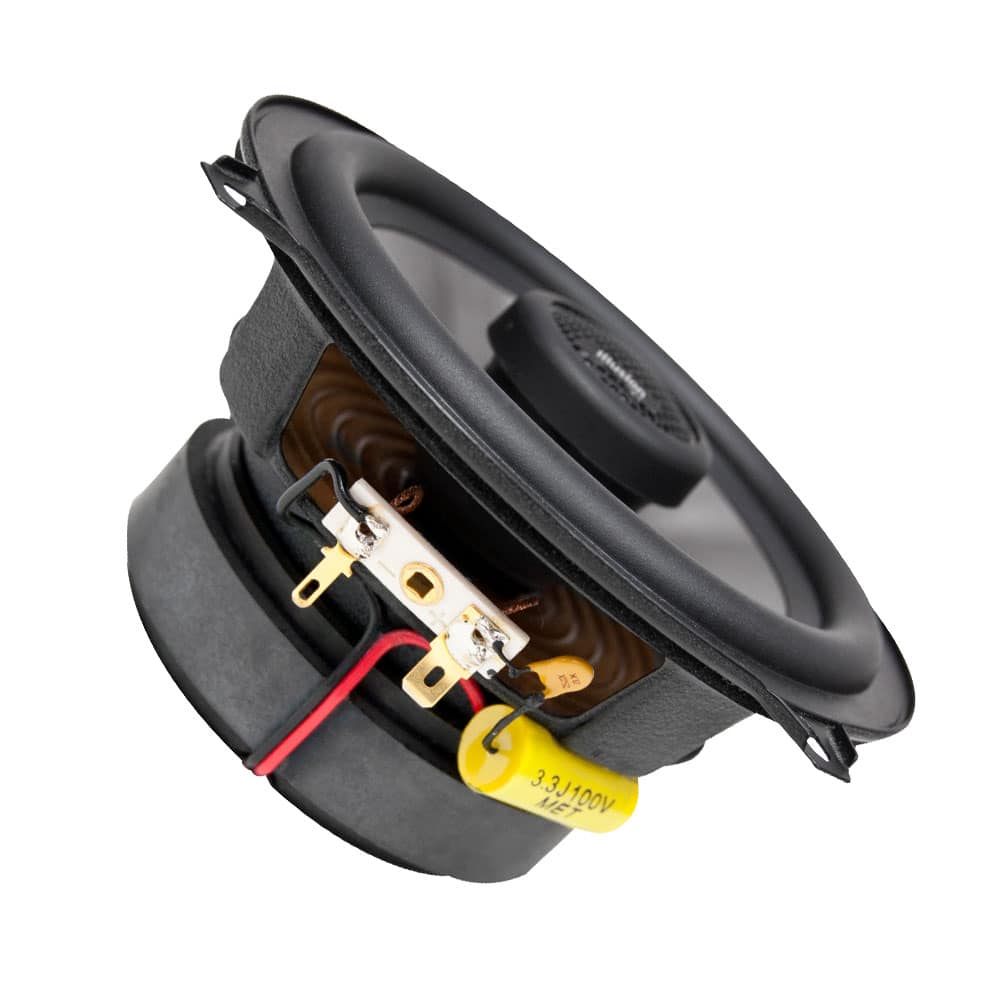

5 Inch Coaxial Kit – Aluminum coated injection polypropylene cone with rubber surround powder coated steel basket
E5CX
5" Coaxial KitDETAILS
SPECIFICATIONS
COAXIAL
- Free Air Resonance: 81.94 Hz
- Nominal Impedance: 4 Ohms
- Sensitivity 2.83 v @ 1 meter: 91.9
- Outside Diameter: 130 mm basket + 150 mm ears
- Mounting Hole Diameter: 117 mm
- Mount Depth: 61 mm
- Coaxial Tweeter
- 4 ohm
- Integrated 6dB crossover
- Polyester capacitor
- Tweeter overload protection
- Maximum Linear Excursion: ± 2.5 mm
