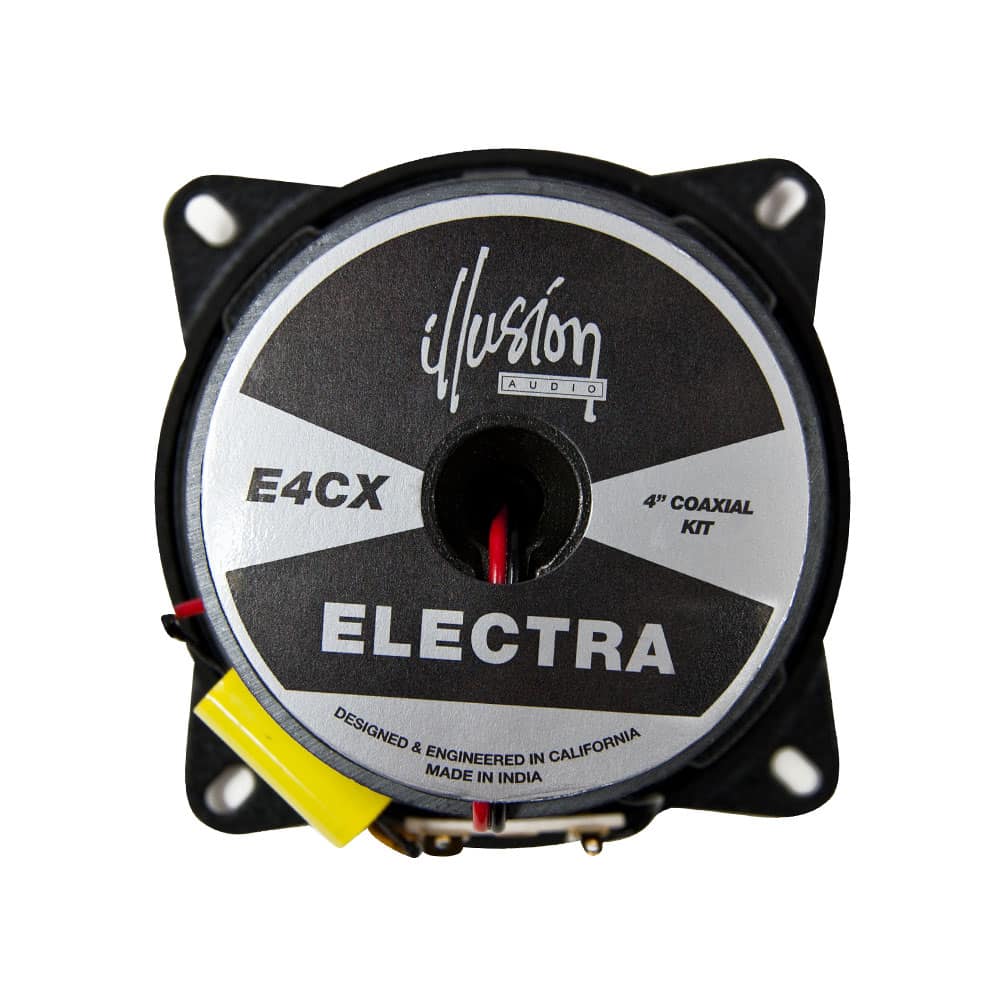

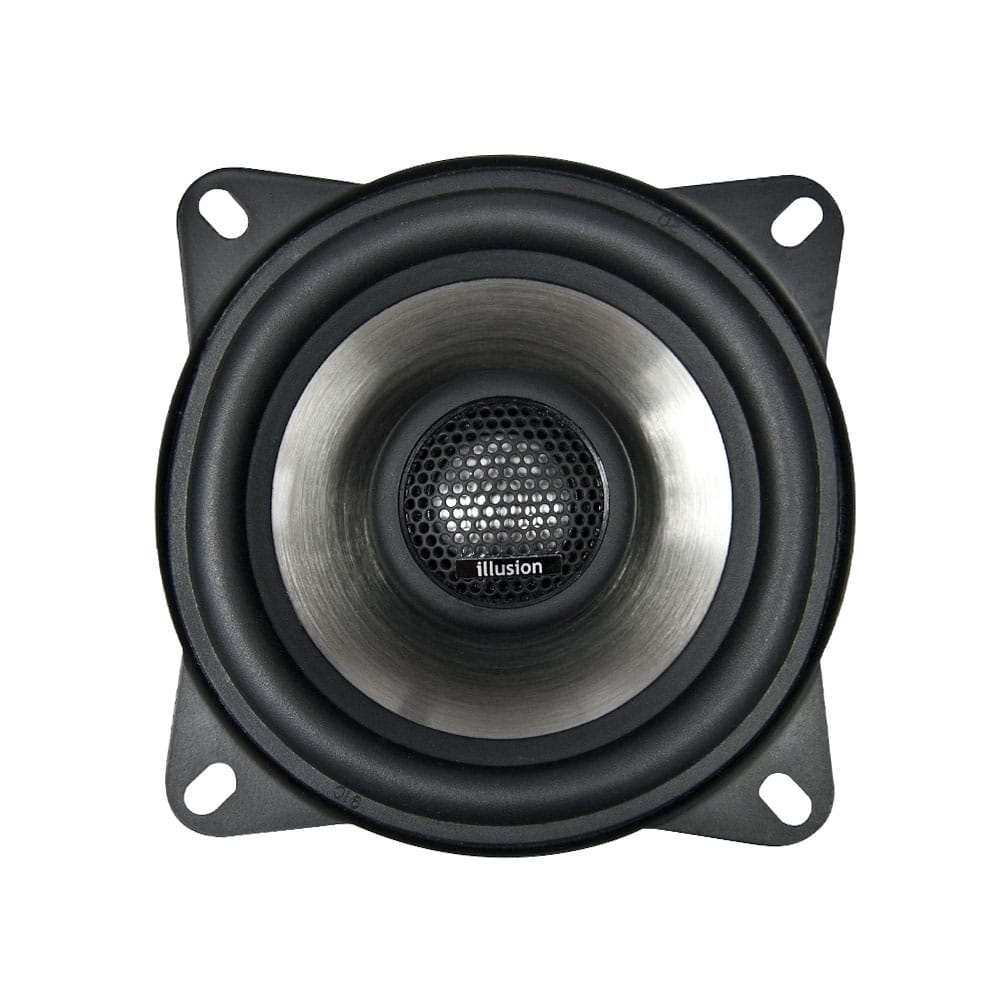

E4CX

4" Coaxial Kit

DETAILS

4 Inch Coaxial Kit –  Aluminum coated injection polypropylene cone with rubber surround powder coated steel basket

SPECIFICATIONS

COAXIAL

  • Free Air Resonance: 113.3 Hz
  • Nominal Impedance: 4 Ohms
  • Sensitivity 2.83 v @ 1 meter: 89.9
  • Outside Diameter: 102 mm basket + 130 mm ears
  • Mounting Hole Diameter: 94.5 mm
  • Mount Depth: 52 mm

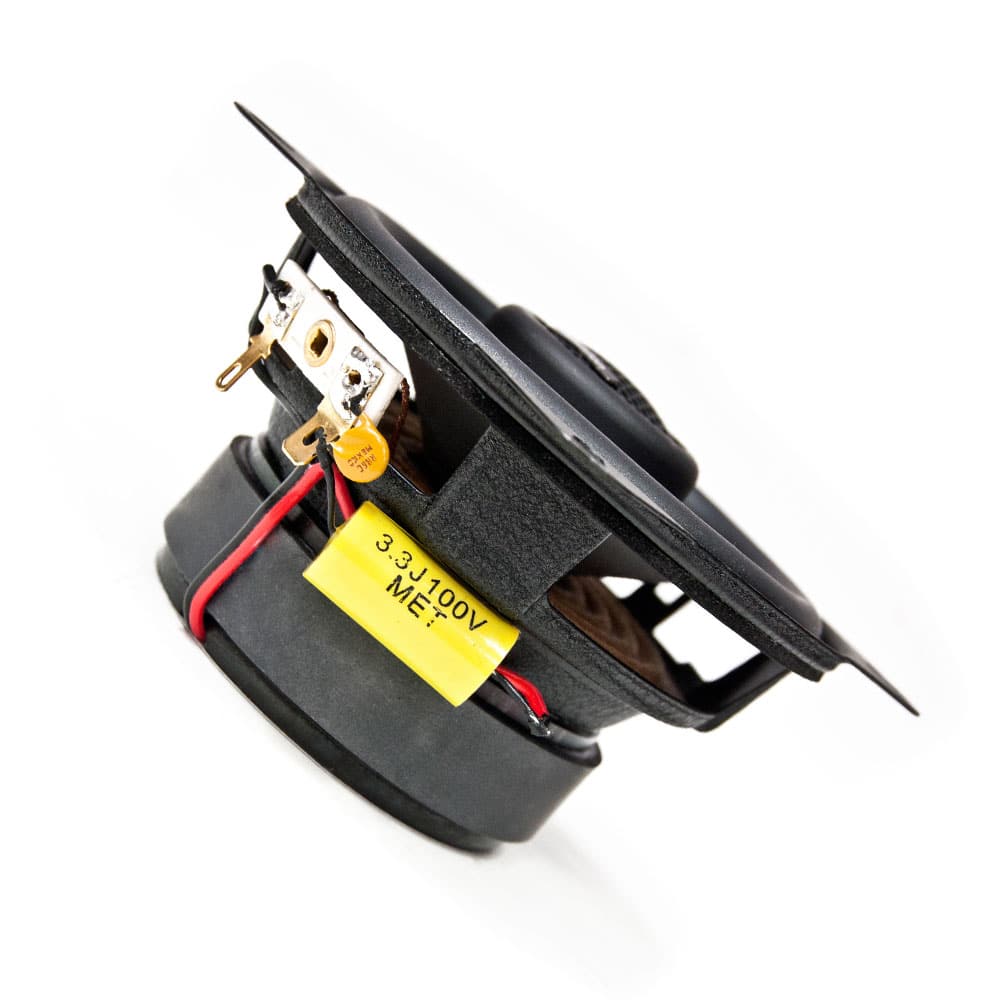

  • Coaxial Tweeter
  • 19 mm aluminum dome
  • Integrated 6dB crossover
  • Polyester capacitor
  • Tweeter overload protection
  • Maximum Linear Excursion: ± 2 mm
