E12

12" Subwoofer

DETAILS

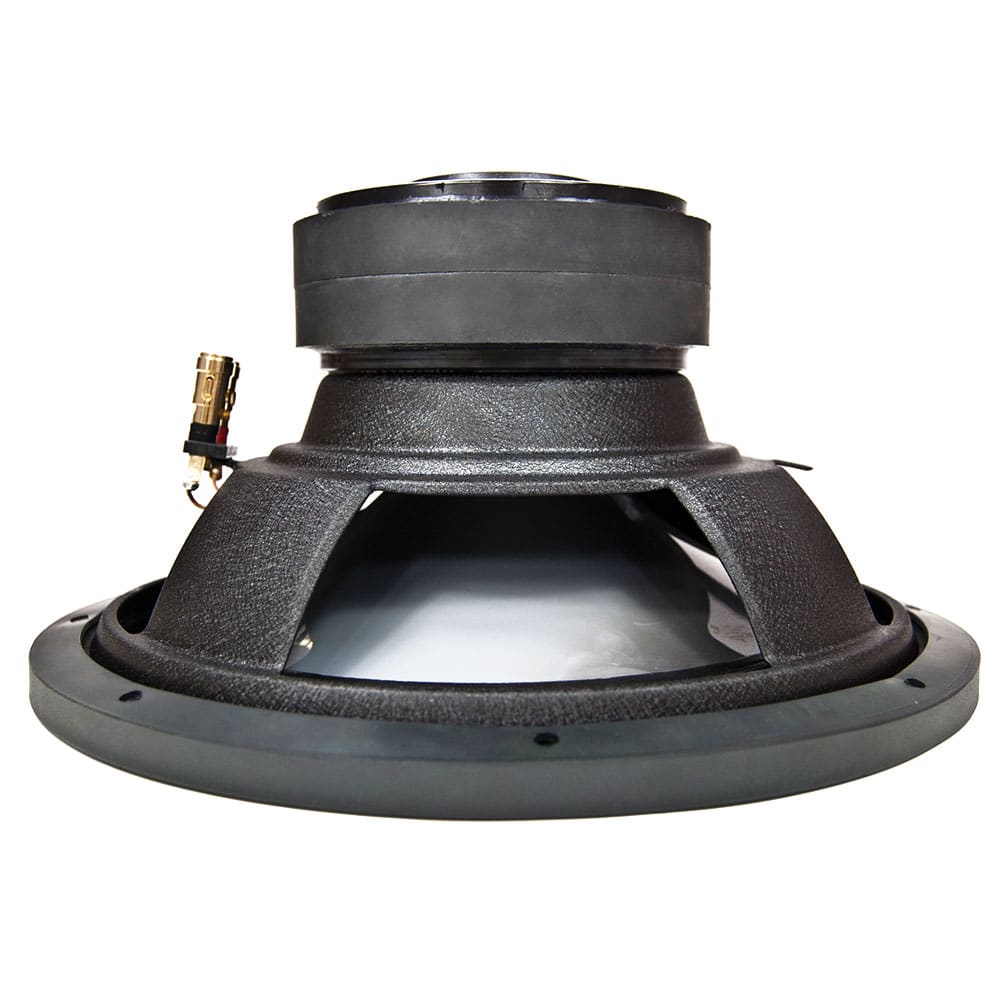

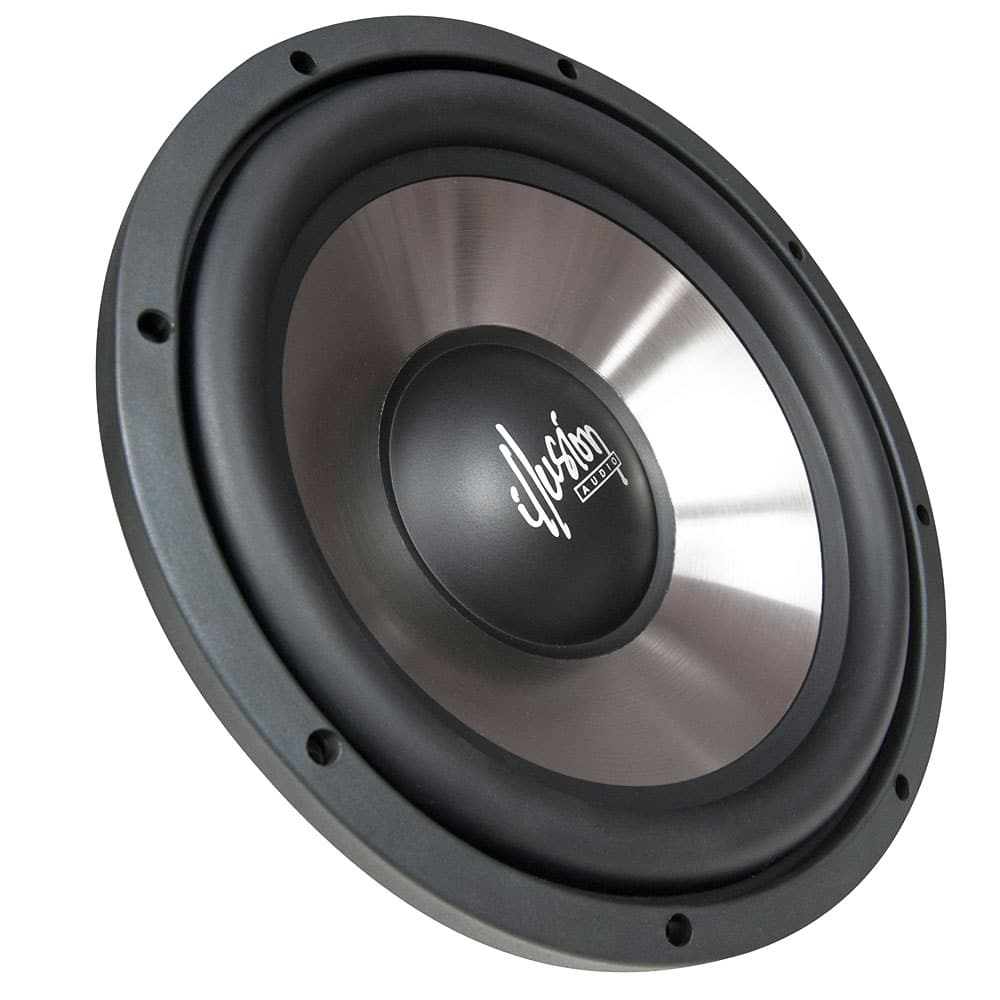

12 Inch Subwoofer –  Aluminum coated injection polypropylene cone with rubber surround powder coated steel basket

SPECIFICATIONS

SUBWOOFER

  • Free Air Resonance: 31.36 Hz
  • Nominal Impedance: 4 Ohms
  • Sensitivity 2.83 v @ 1 meter: 87.2
  • Outside Diameter: 312 mm
  • Mounting Hole Diameter: 280 mm
  • Mount Depth: 154 mm
  • Recommended Sealed Enclosure Volume: 1.0 ft3
  • Maximum Linear Excursion: ± 14 mm
