E10

10" Subwoofer

DETAILS

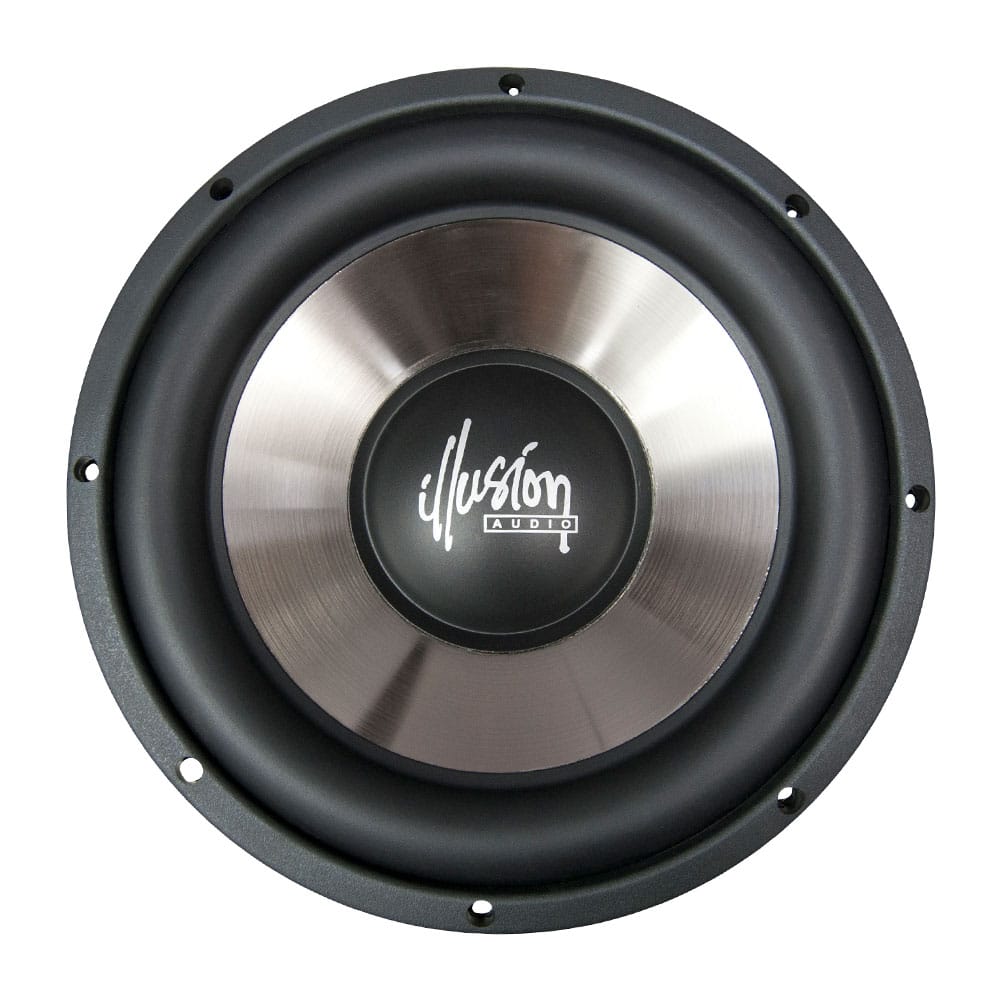

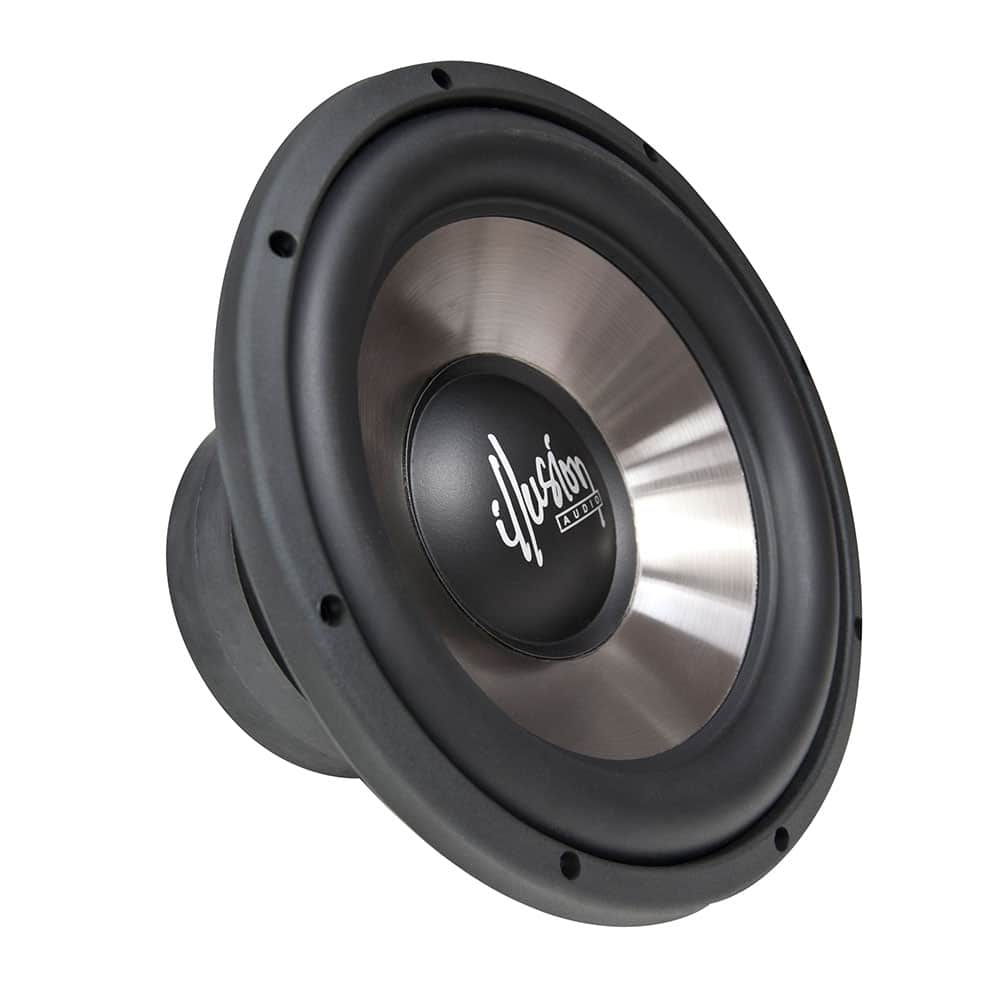

10 Inch Subwoofer –  Aluminum coated injection polypropylene cone with rubber surround powder coated steel basket

SPECIFICATIONS

SUBWOOFER

  • Free Air Resonance: 28.84 Hz
  • Nominal Impedance: 4 Ohms
  • Sensitivity 2.83 v @ 1 meter: 86.3
  • Outside Diameter: 257 mm
  • Mounting Hole Diameter: 232 mm
  • Mount Depth: 141 mm
  • Recommended Sealed Enclosure Volume: 0.75 ft3
  • Maximum Linear Excursion: ± 14 mm
