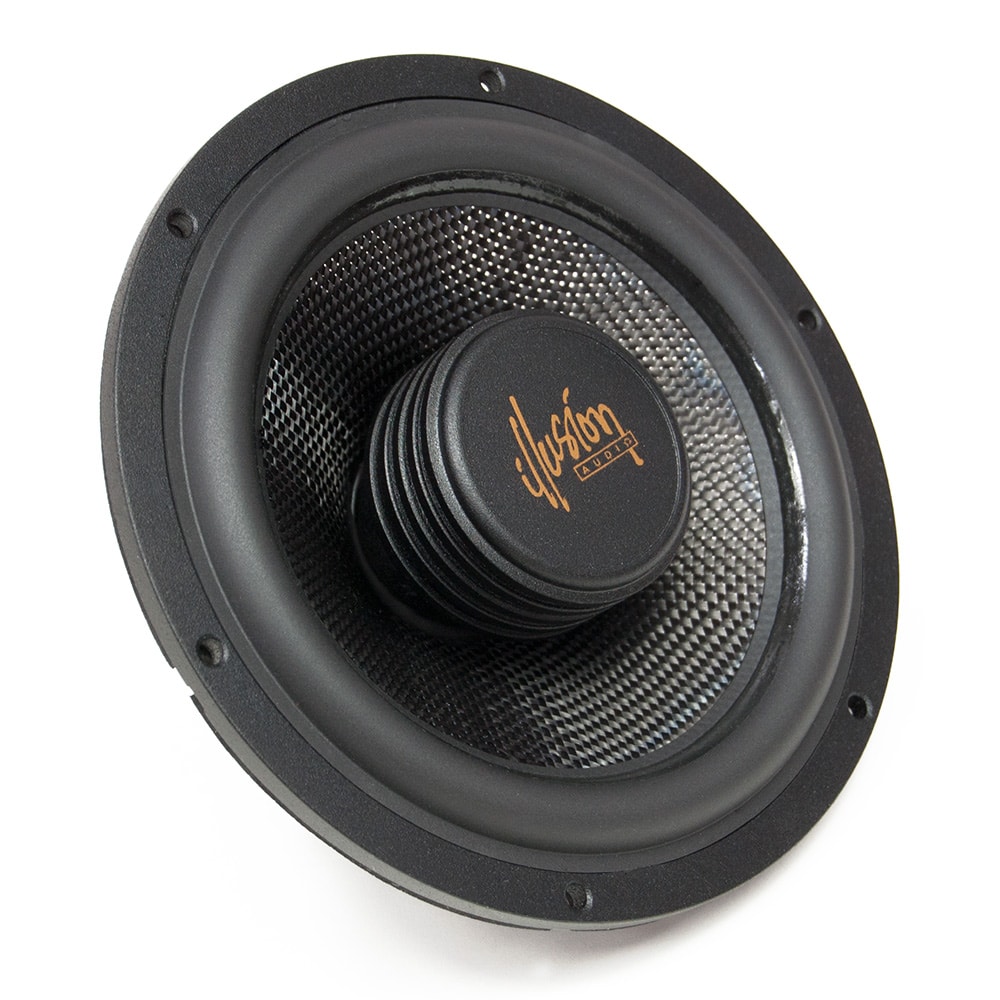

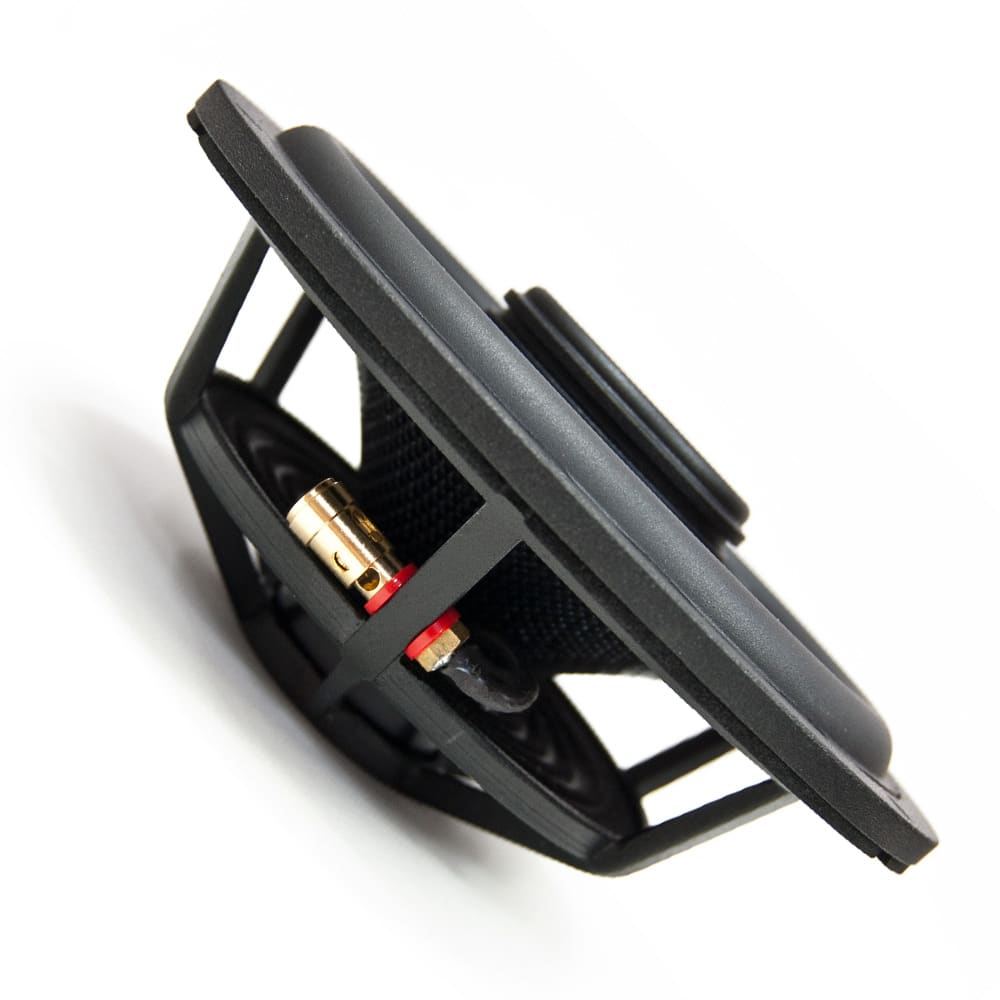

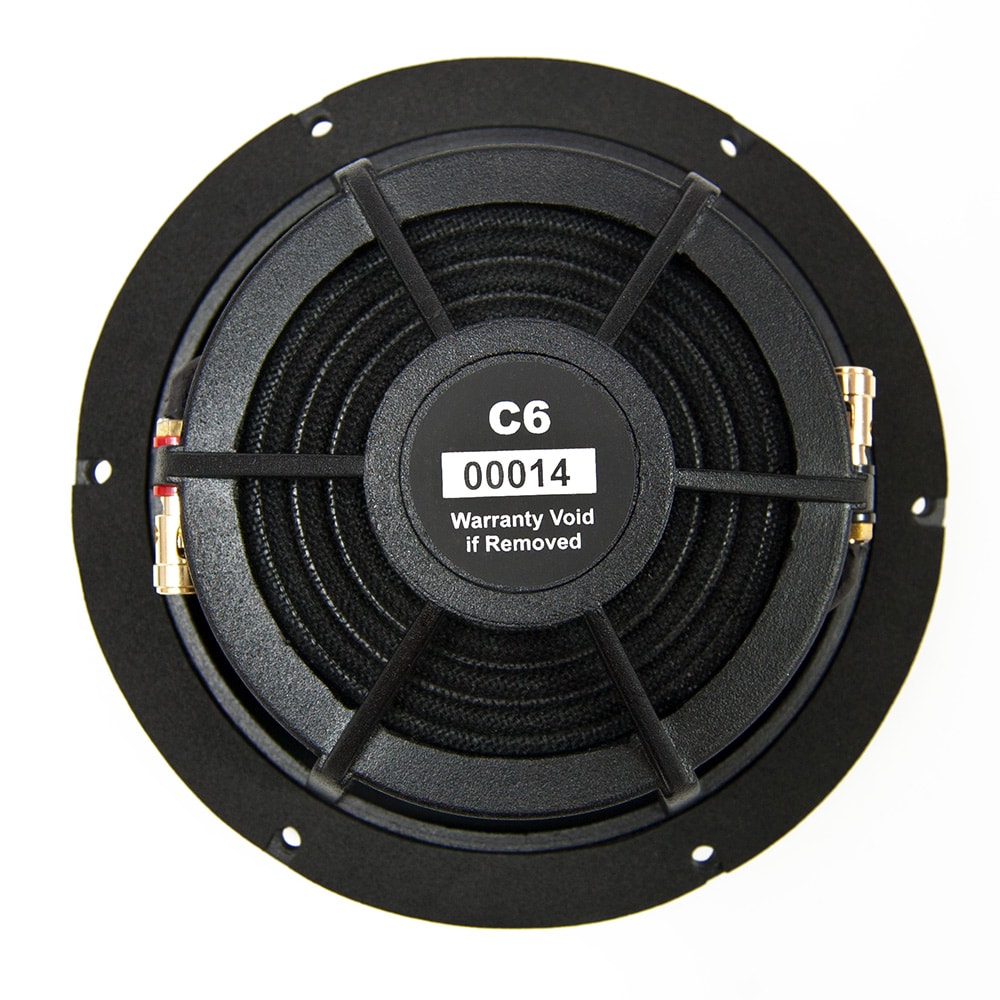

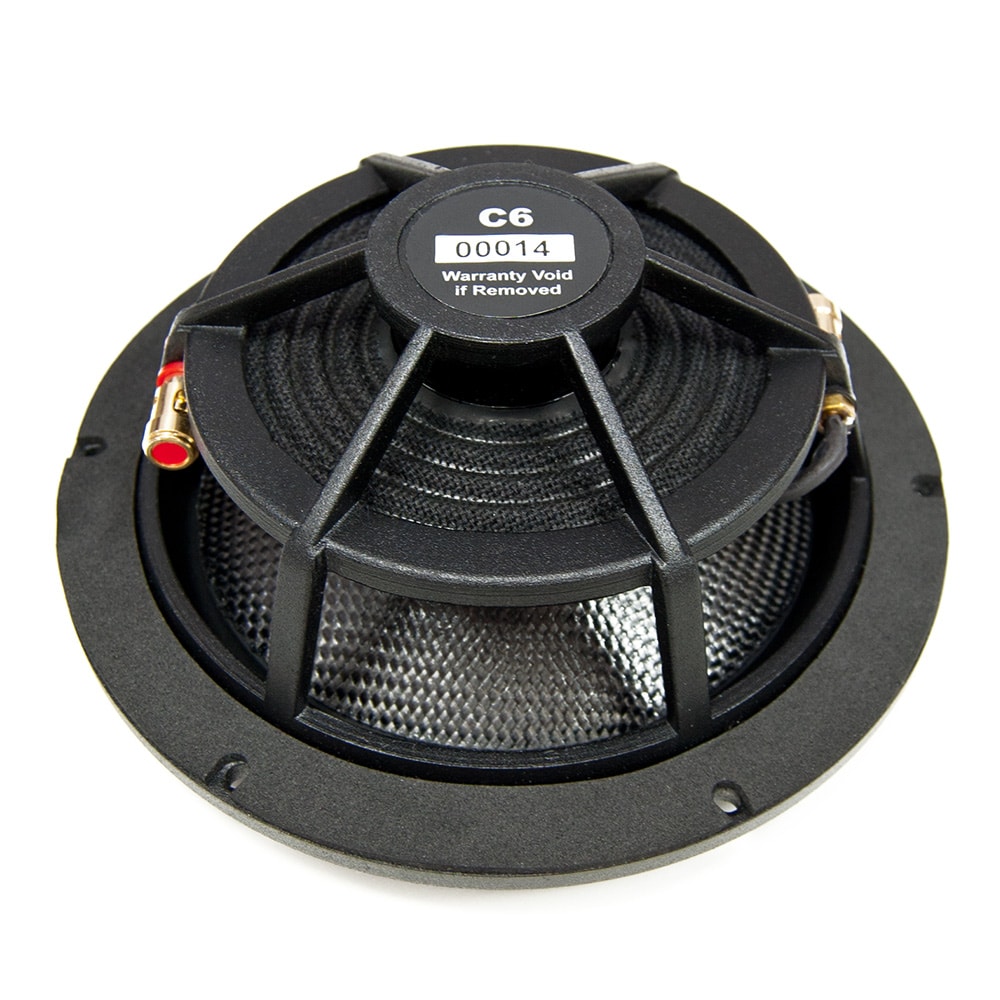

Carbon Series 6-Inch 2-Way Component Kit
C6
6" 2-Way Component KitDETAILS
SPECIFICATIONS
MIDBASS
- Free Air Resonance: 67.29 Hz
- Nominal Impedance: 4 Ohms
- Sensitivity 2.83 V @ 1 meter: 90.7
- Outside Diameter: 166.5 mm
- Mounting Hole Diameter: 137.4 mm
- Mount Depth: 53.3 mm
- Maximum Linear Excursion: ± 7.7 mm
CROSSOVER
- Bi Amp 12 dB crossover
- Tweeter overload protection
- Dimensions: 131 x 84 x 38 mm
TWEETER
- Component Tweeter
- 25 mm Beryllium Copper
- 4 ohm
- Outside Diameter: 48.2 mm
- Mount Hole: 43.5 mm
- Mount Depth: 24 mm
