C4 S

4" Slim Component Kit

DETAILS

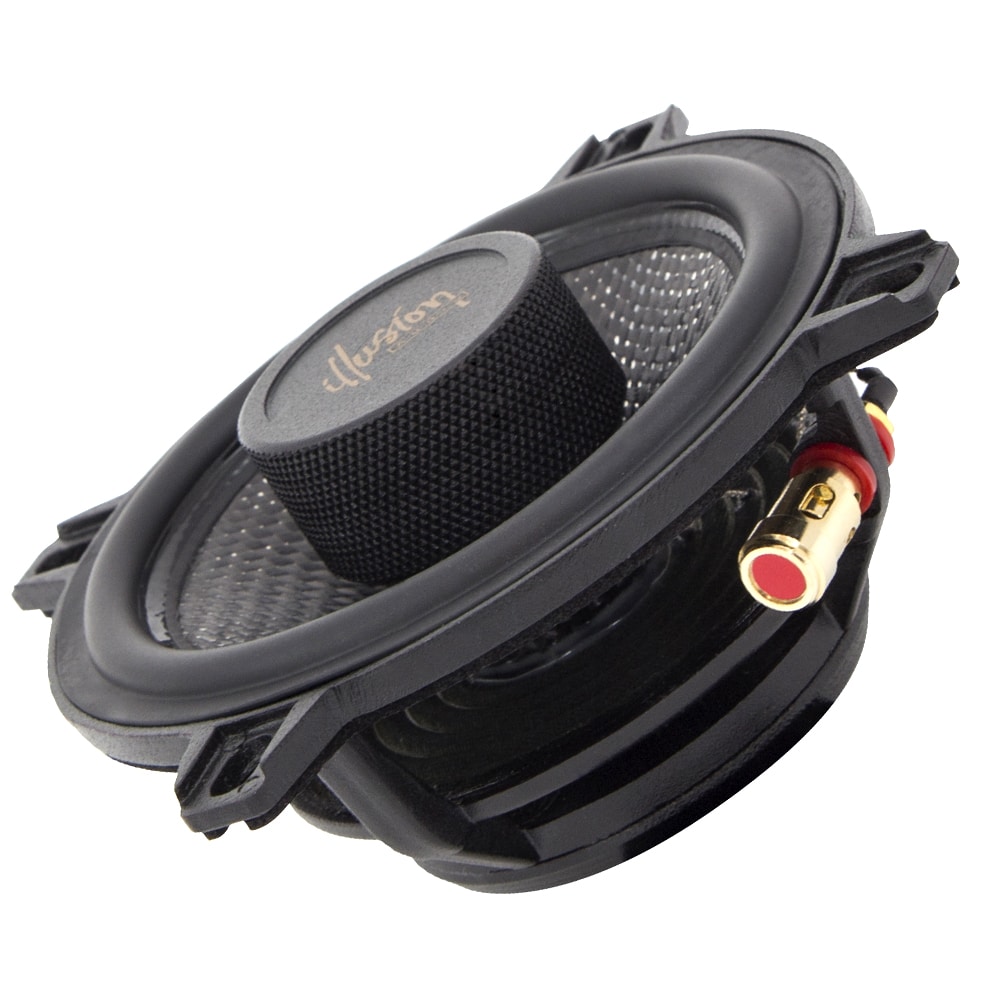

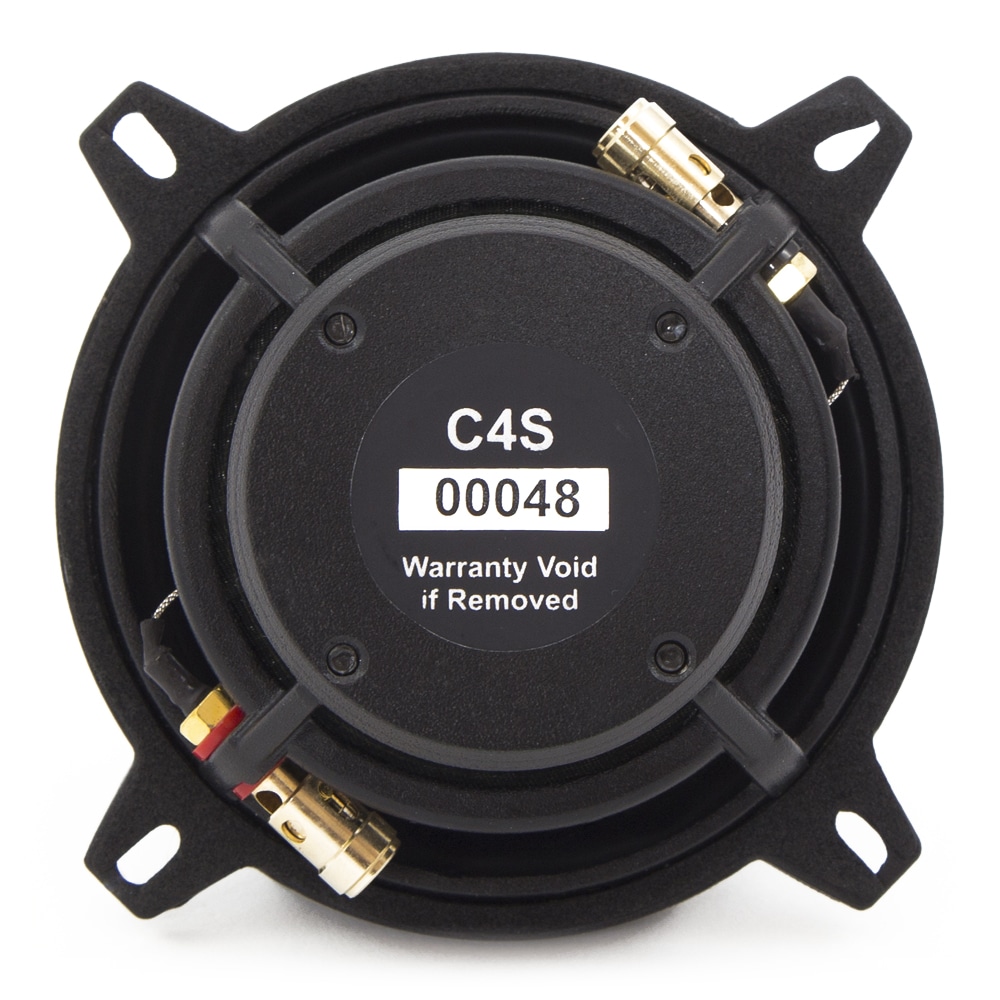

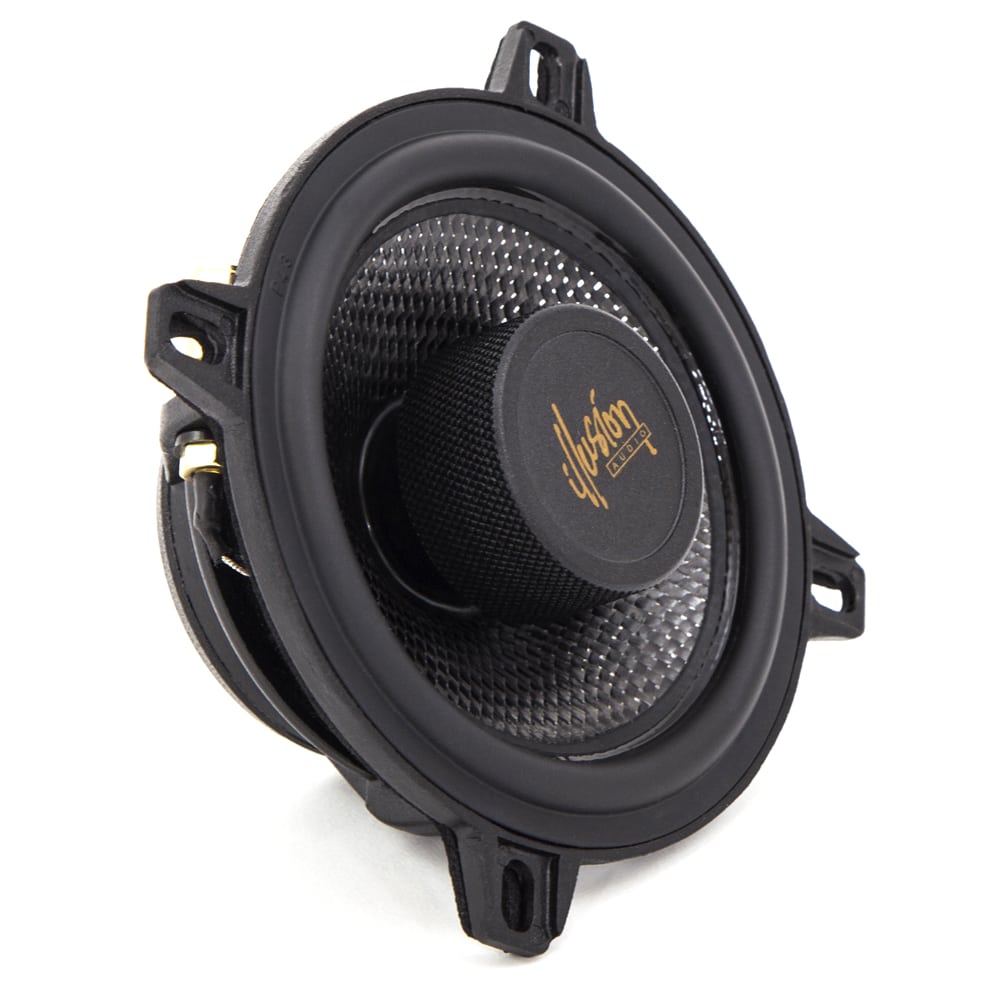

Carbon Series 4-Inch Slim Component Kit – Woven carbon fiber cone with rubber surround & cast aluminum basket

SPECIFICATIONS

MIDBASS

  • Free Air Resonance: 65 Hz
  • Nominal Impedance: 4 Ohms
  • Sensitivity 2.83 V @ 1 meter: 86.3 dB
  • Outside Diameter: 102 mm basket / 127 mm with ears
  • Mounting Hole Diameter: 94 mm
  • Mount Depth: 39 mm
  • Mount Screws: Four #6 on 113.8mm circle

CROSSOVER

  • Bi Amp 12 dB crossover
  • Tweeter overload protection
  • Dimensions: 131 x 84 x 38 mm

TWEETER

  • Component Tweeter
  • 25 mm Beryllium Copper
  • 4 ohm
  •  Outside Diameter: 48.2 mm
  •  Mount Hole Diameter: 43.5 mm
  •  Mount Depth: 24 mm
