C3

3" Component Kit

DETAILS

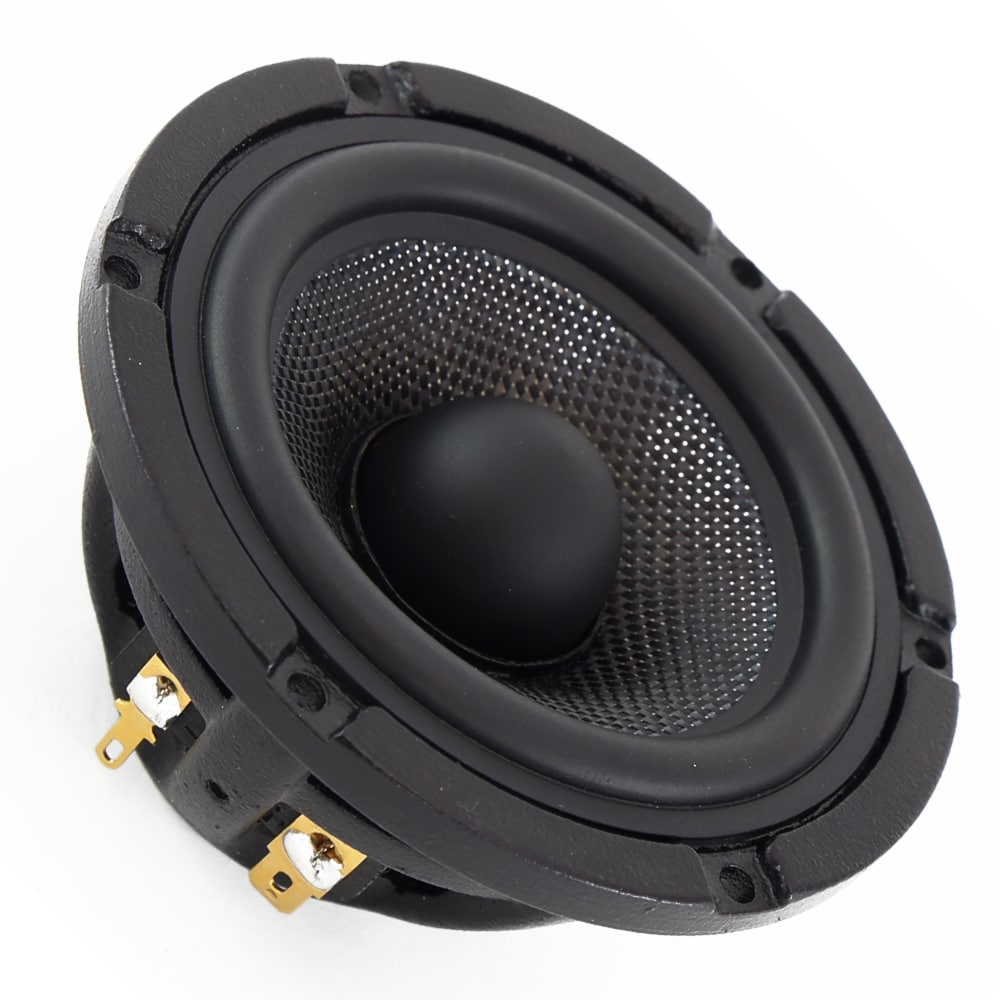

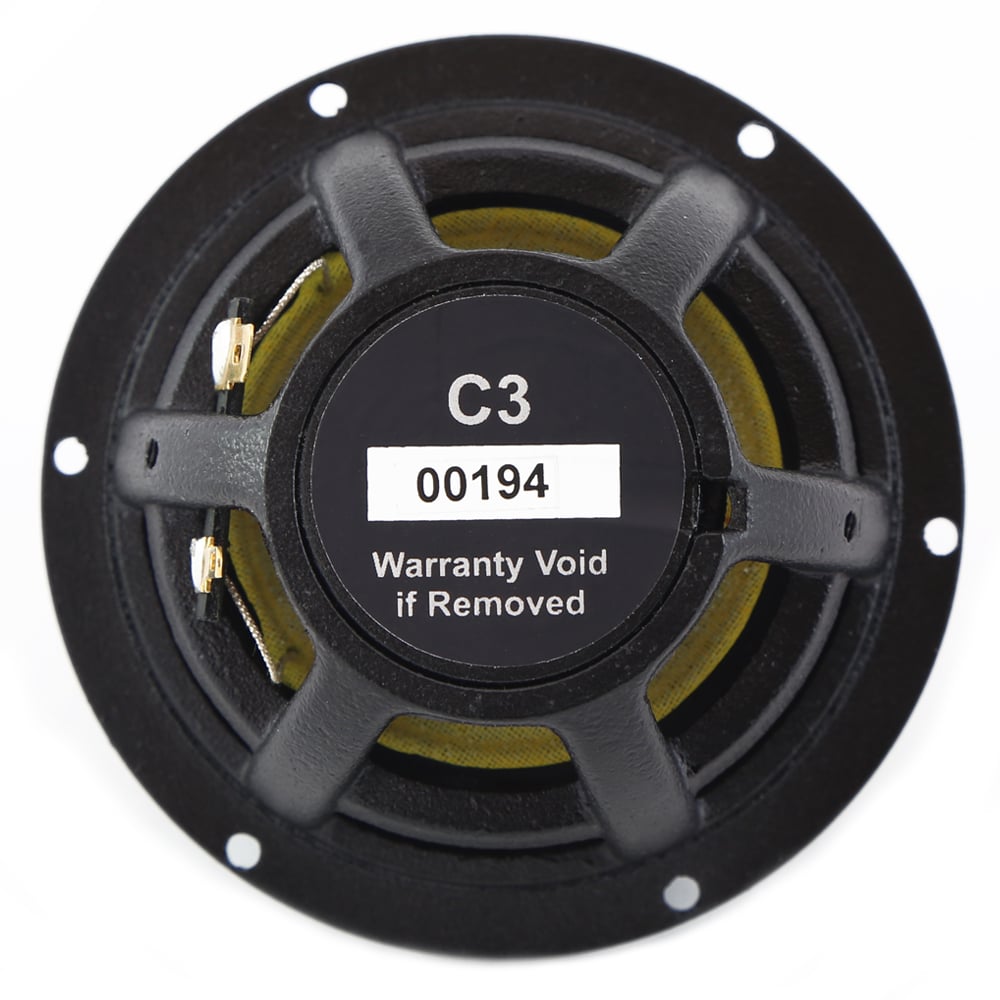

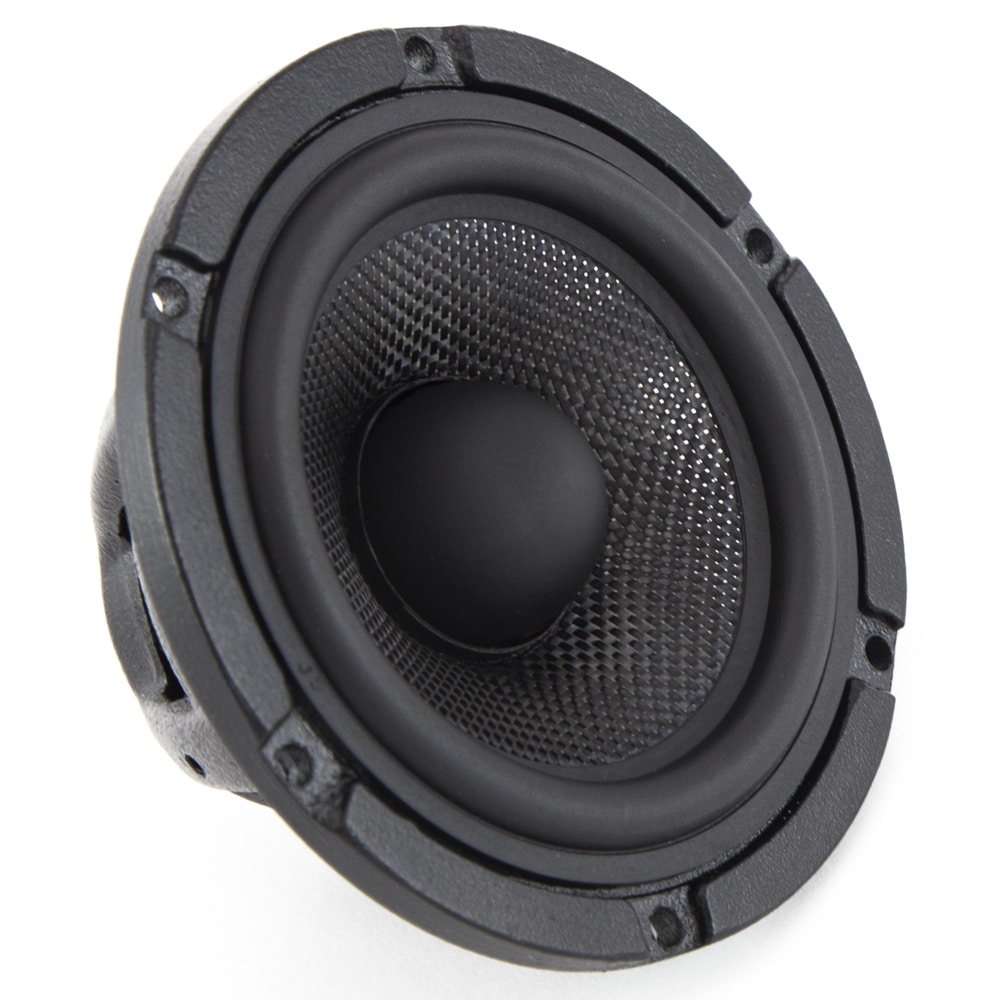

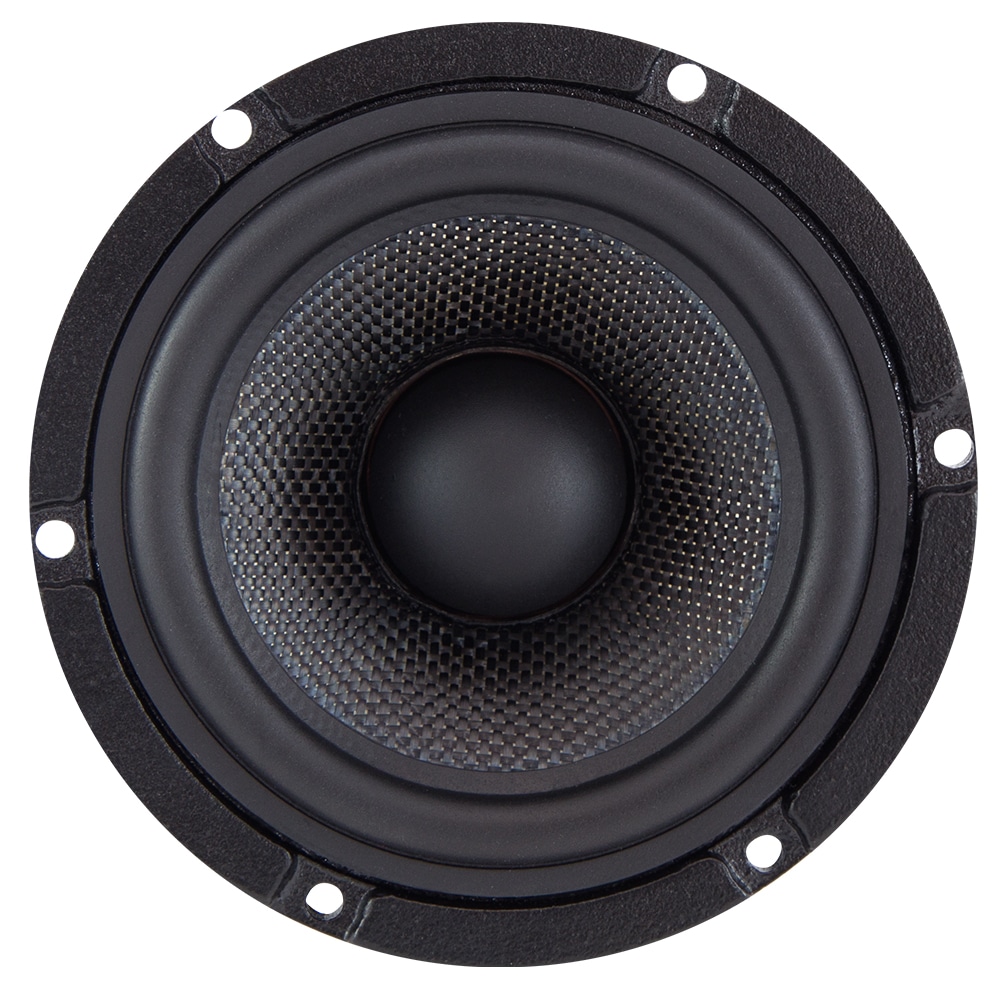

Carbon Series 3-Inch Slim Component Kit – Woven carbon fiber cone with rubber surround & cast aluminum basket

SPECIFICATIONS

MIDBASS

  • Free Air Resonance: 106 Hz
  • Nominal Impedance: 4 Ohms
  • Sensitivity 2.83 V @ 1 meter: 88 dB
  • Outside Diameter: 88 mm basket
  • Mounting Hole Diameter: 75 mm
  • Mount Depth: 38 mm

CROSSOVER

  • Bi Amp 12 dB crossover
  • Tweeter overload protection
  • Dimensions: 131 x 84 x 38 mm

TWEETER

  • 25 mm Beryllium Copper
  • 4 ohm
  • Outside Diameter: 48.2 mm
  • Mount Hole Diameter: 43.5 mm
  • Mount Depth: 24 mm
