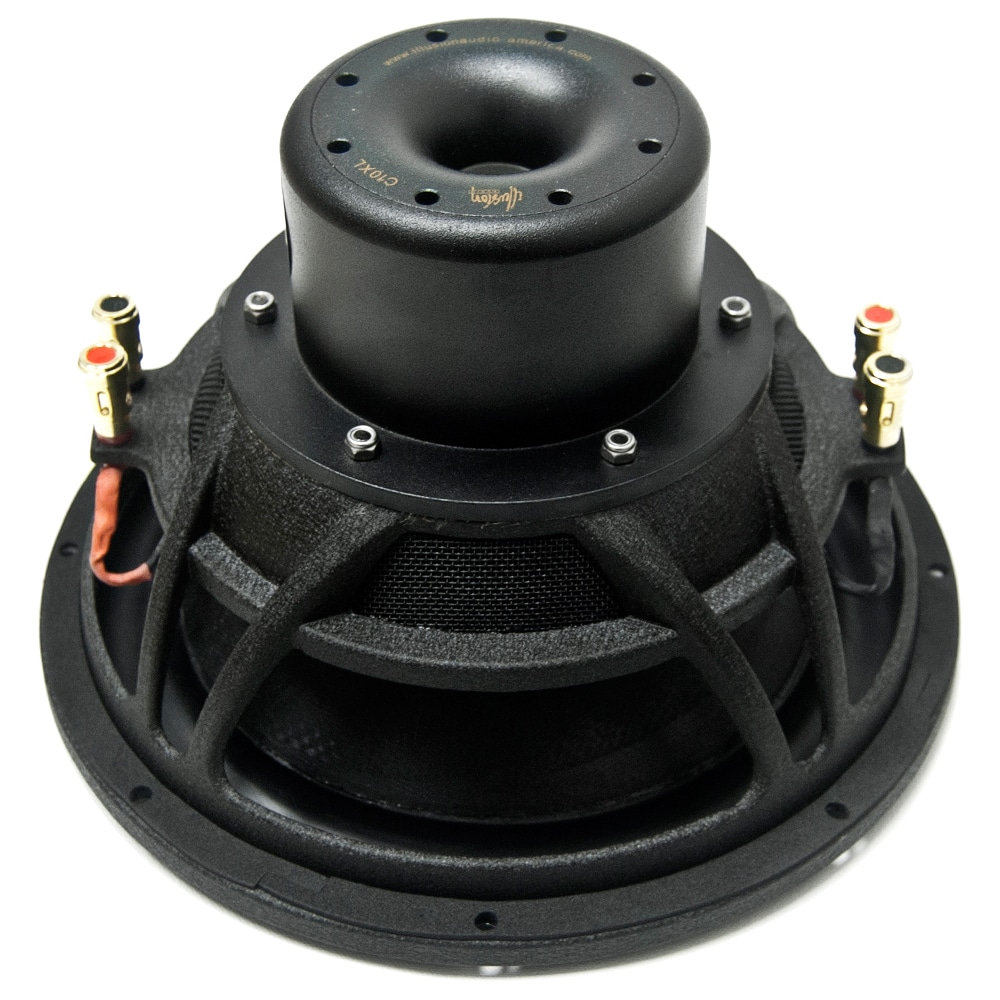

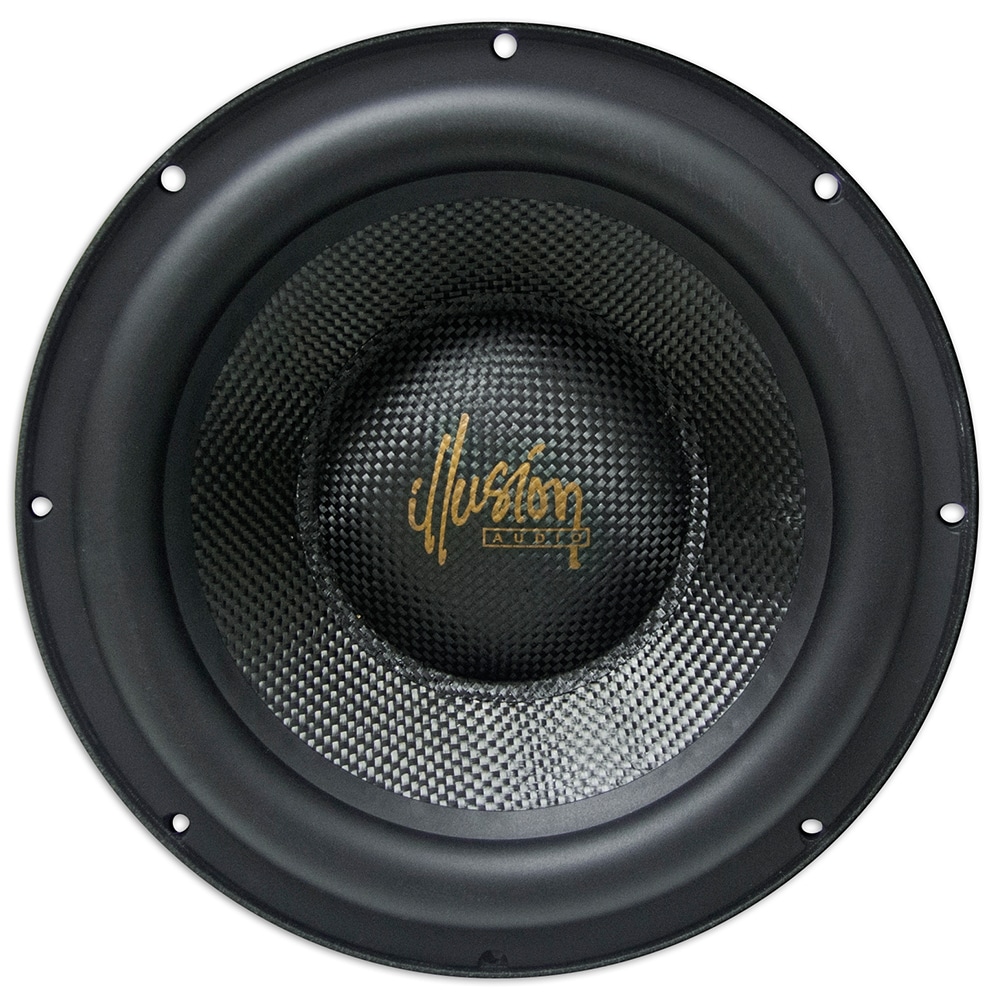

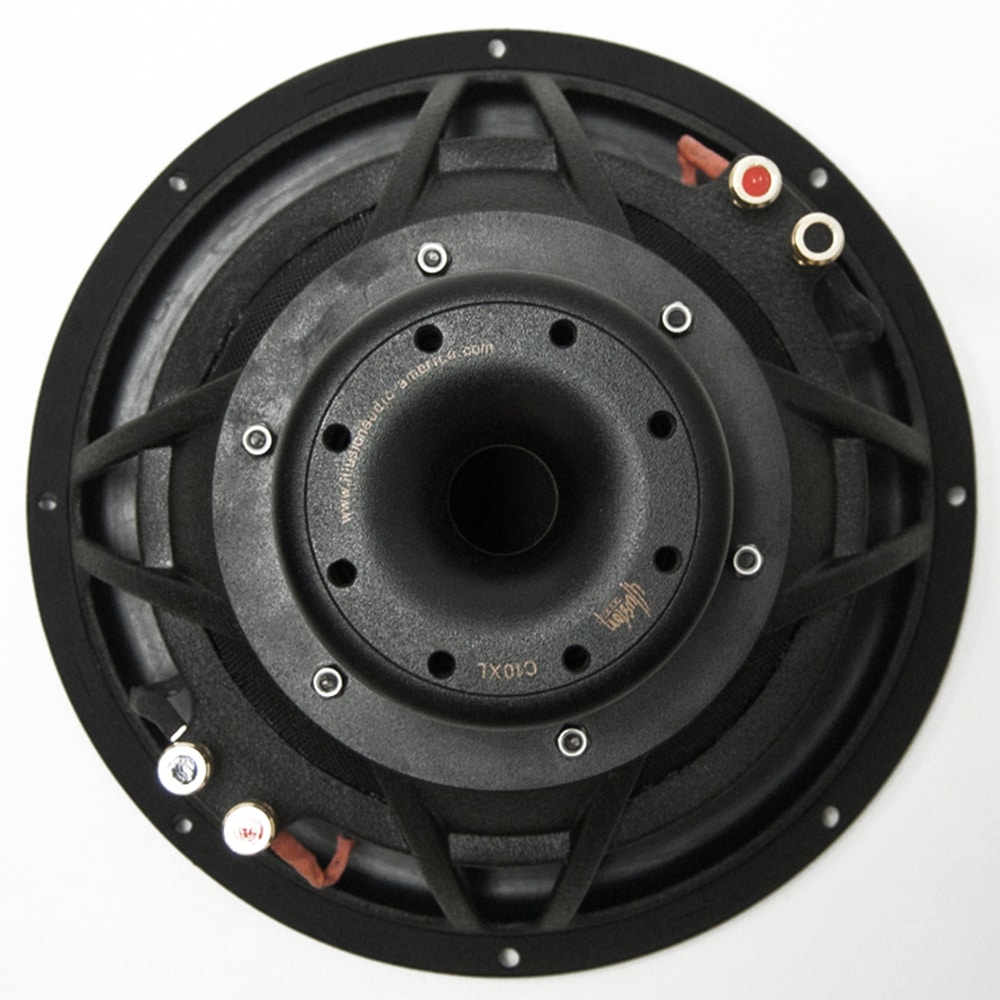

Carbon Series 10-Inch XL Subwoofer
Woven carbon fiber cone with rubber surround cast aluminum basket
C10 XL
10" XL SubwooferDETAILS
SPECIFICATIONS
SUBWOOFER
- Dual 2 Ohm Voice Coils
- Free Air Resonance: 42 Hz
- Nominal Impedance: 4 Ohms
- Sensitivity 2.83 v @ 1 meter: 85.6
- Mounting Hole Diameter: 234 mm
- Mount Depth: 147 mm
- Recommended Sealed Enclosure Volume: 0.75 ft3
- Maximum Linear Excursion: ± 18 mm
