C8
8" 2-way Component Kit
Illusion Audio | High-End Mobile Audio
/
C8
DETAILS

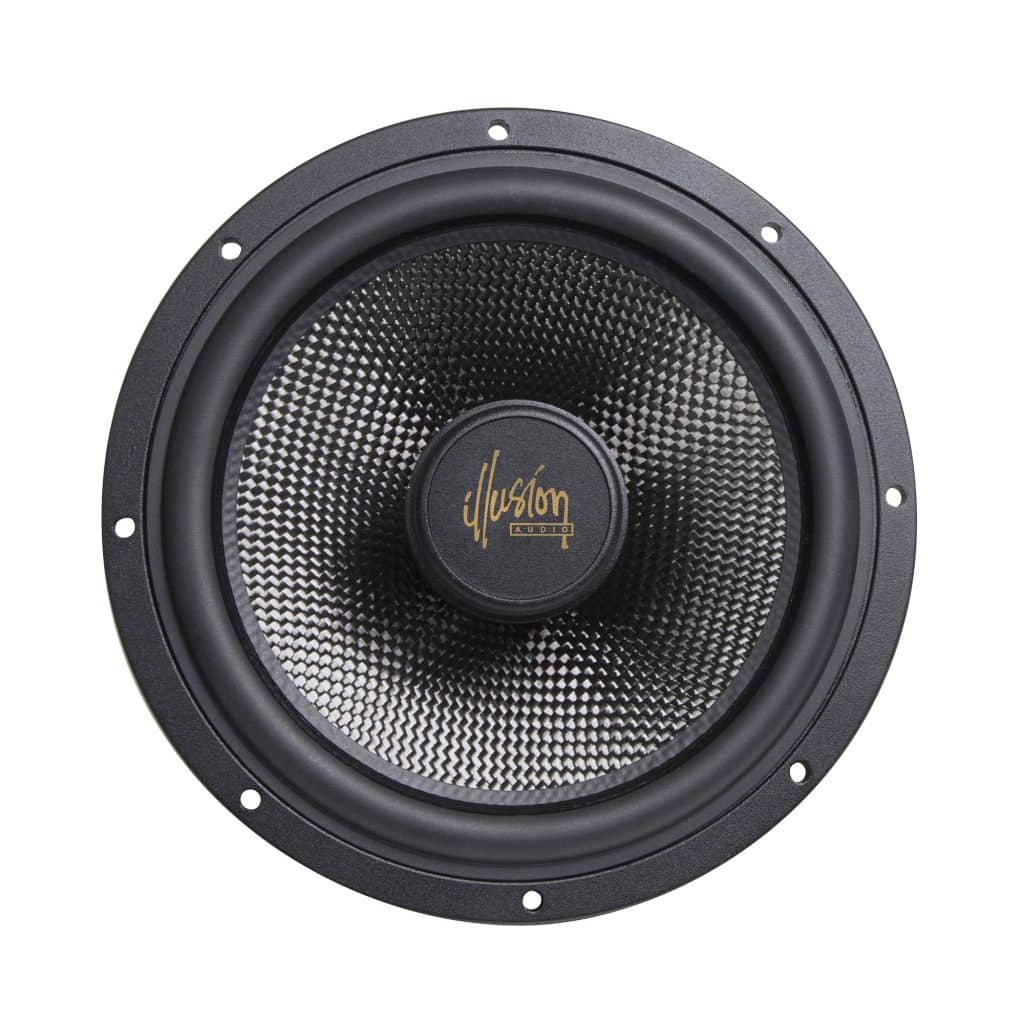

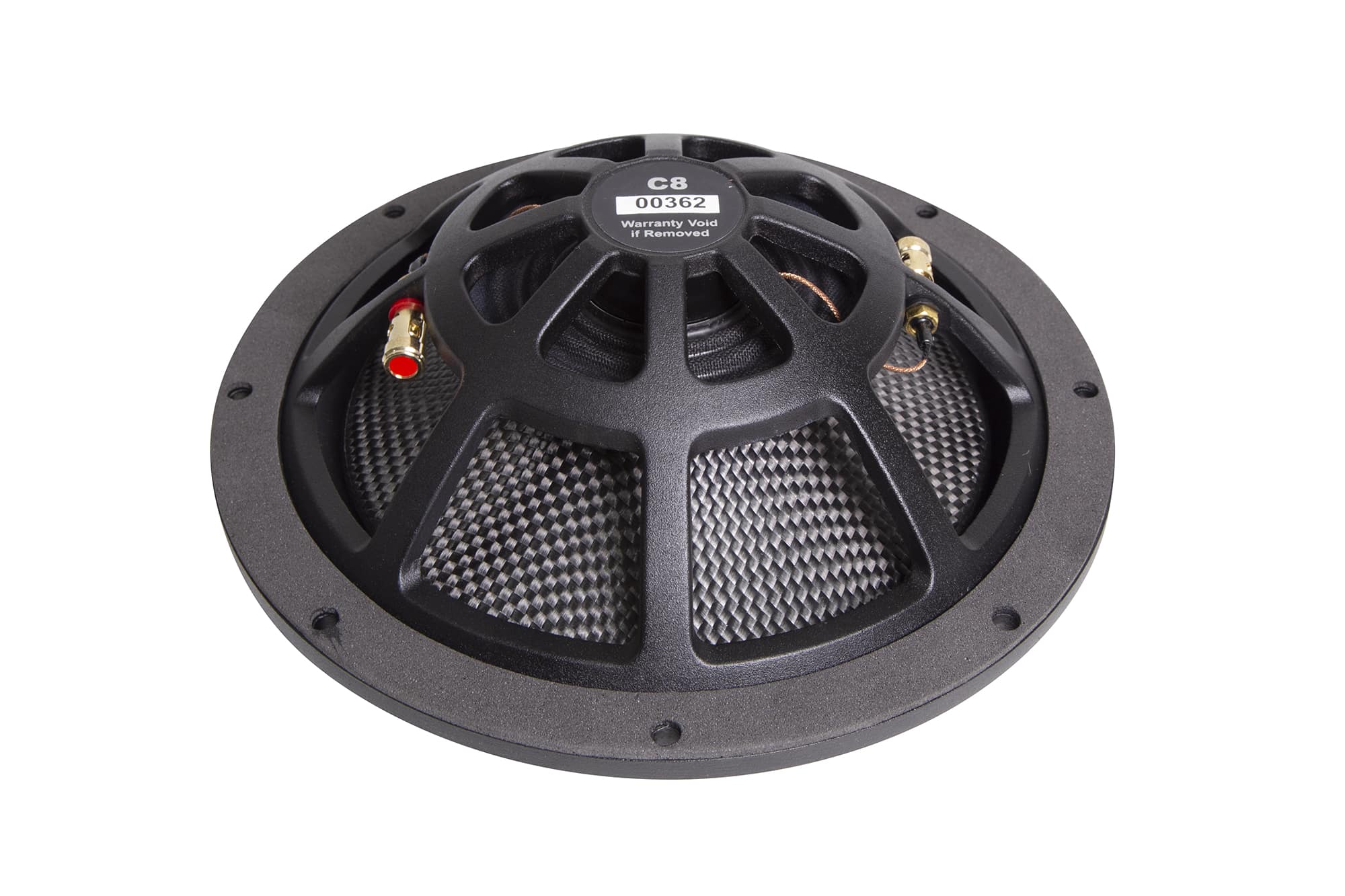

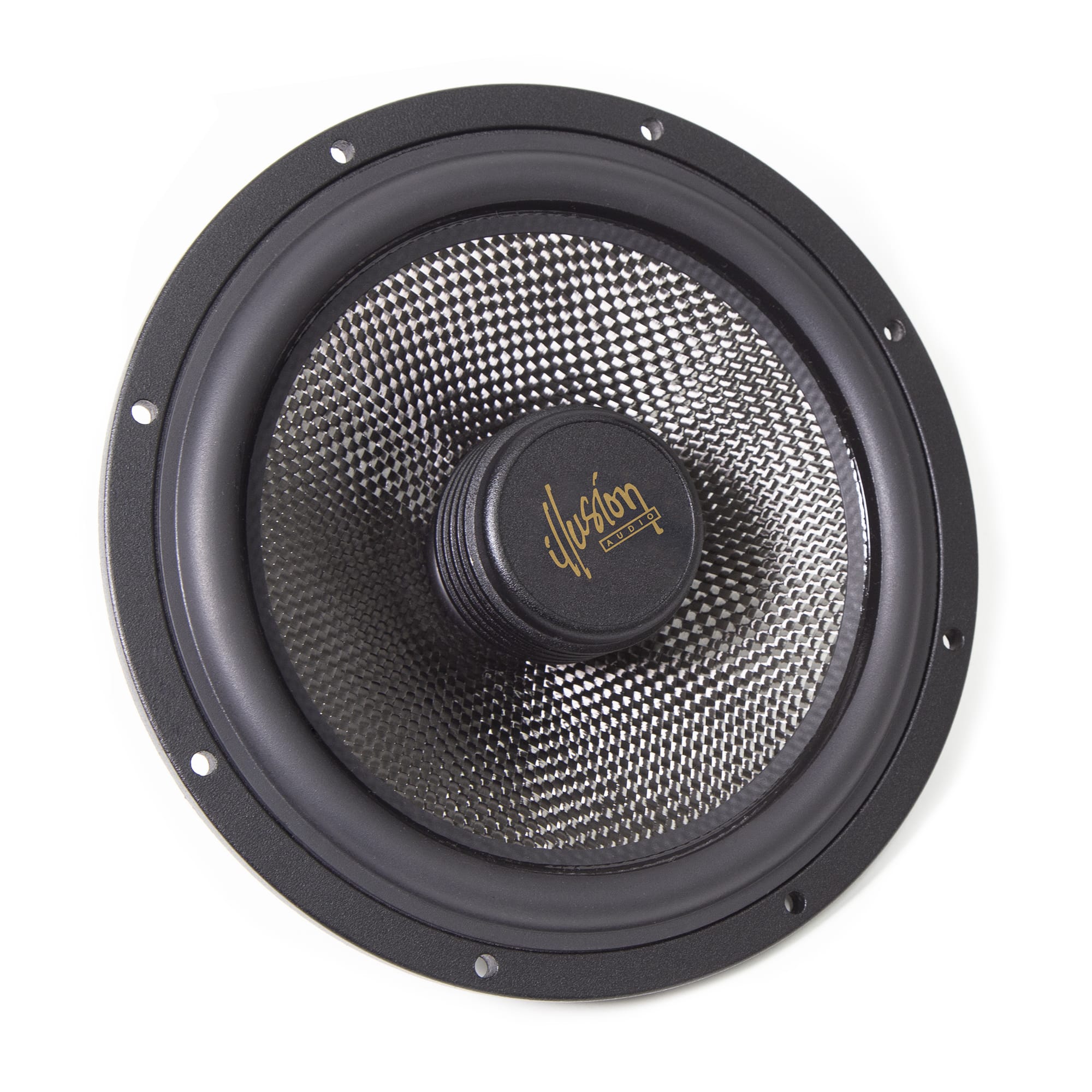

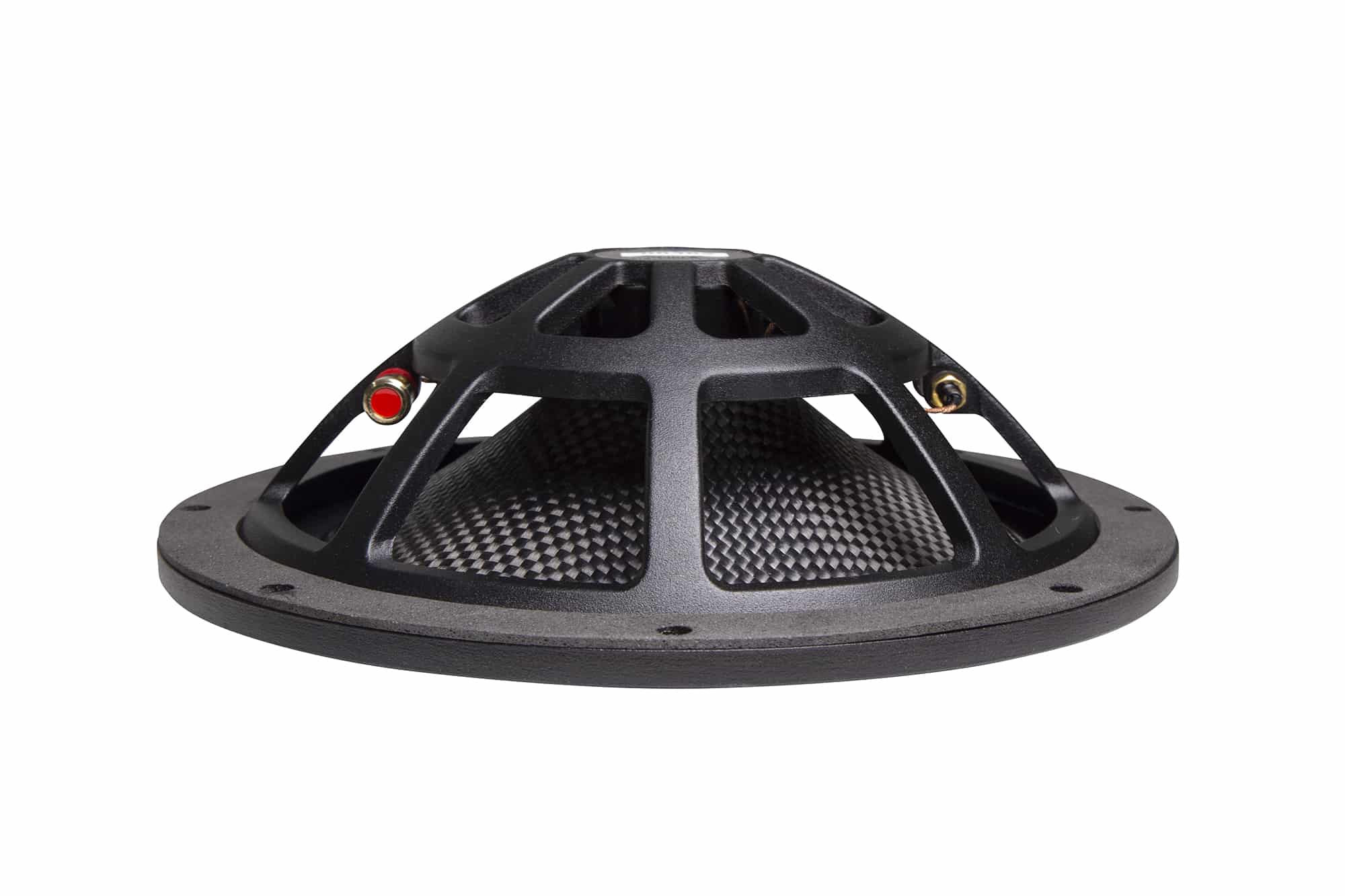

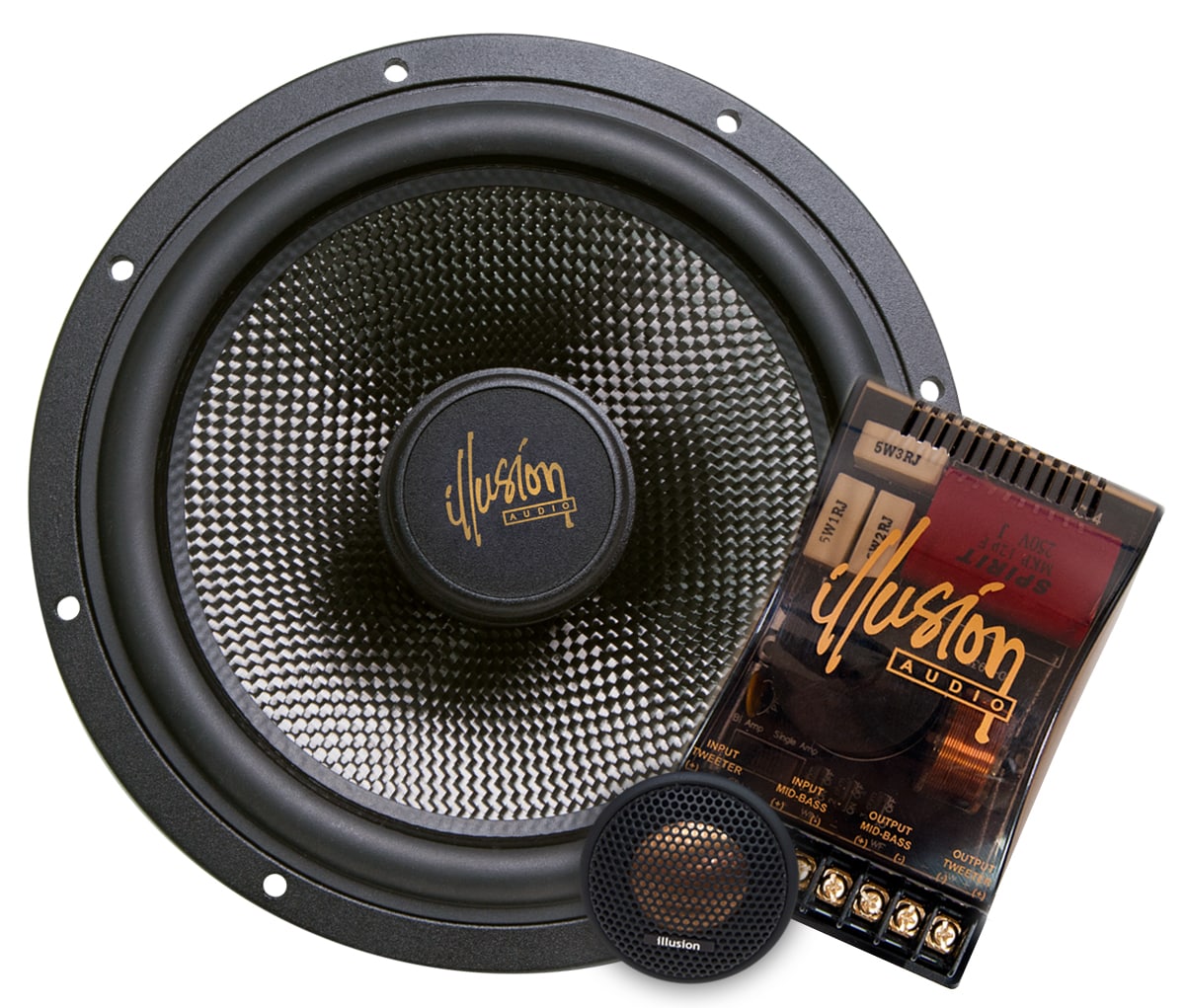

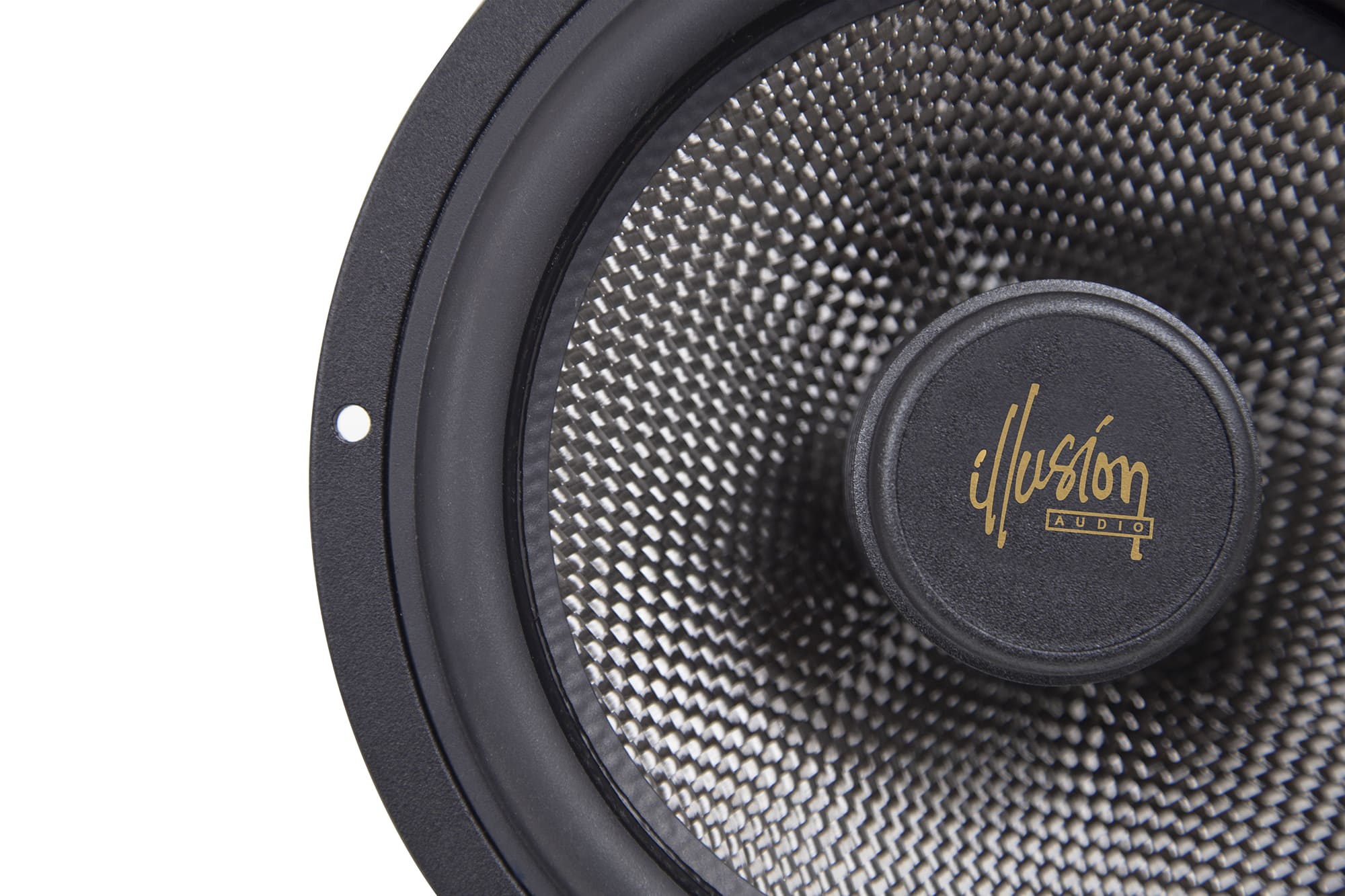

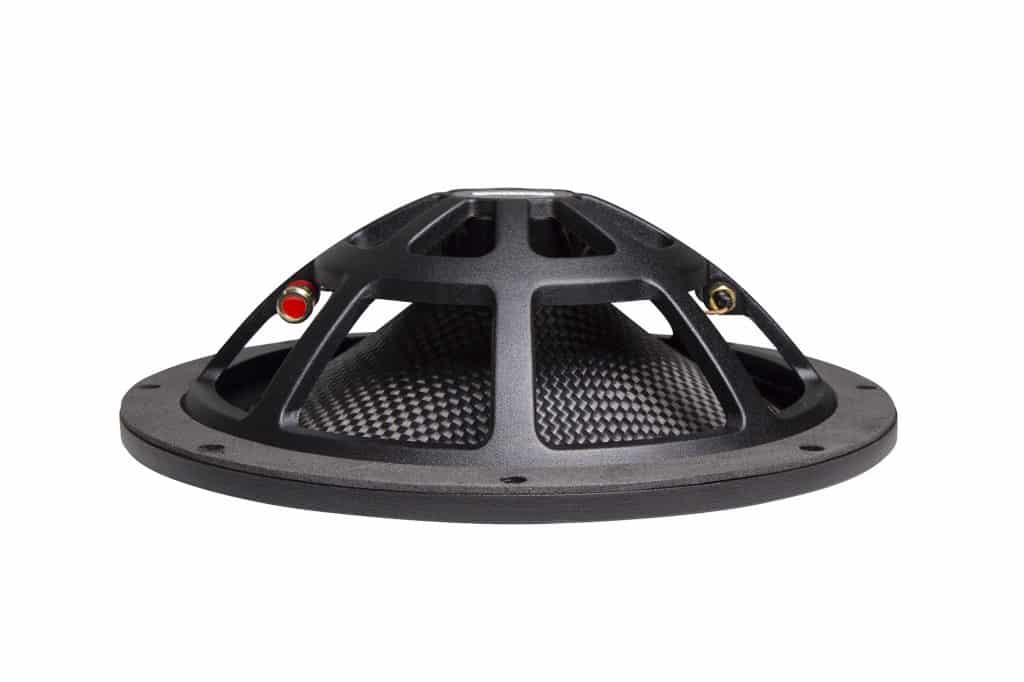

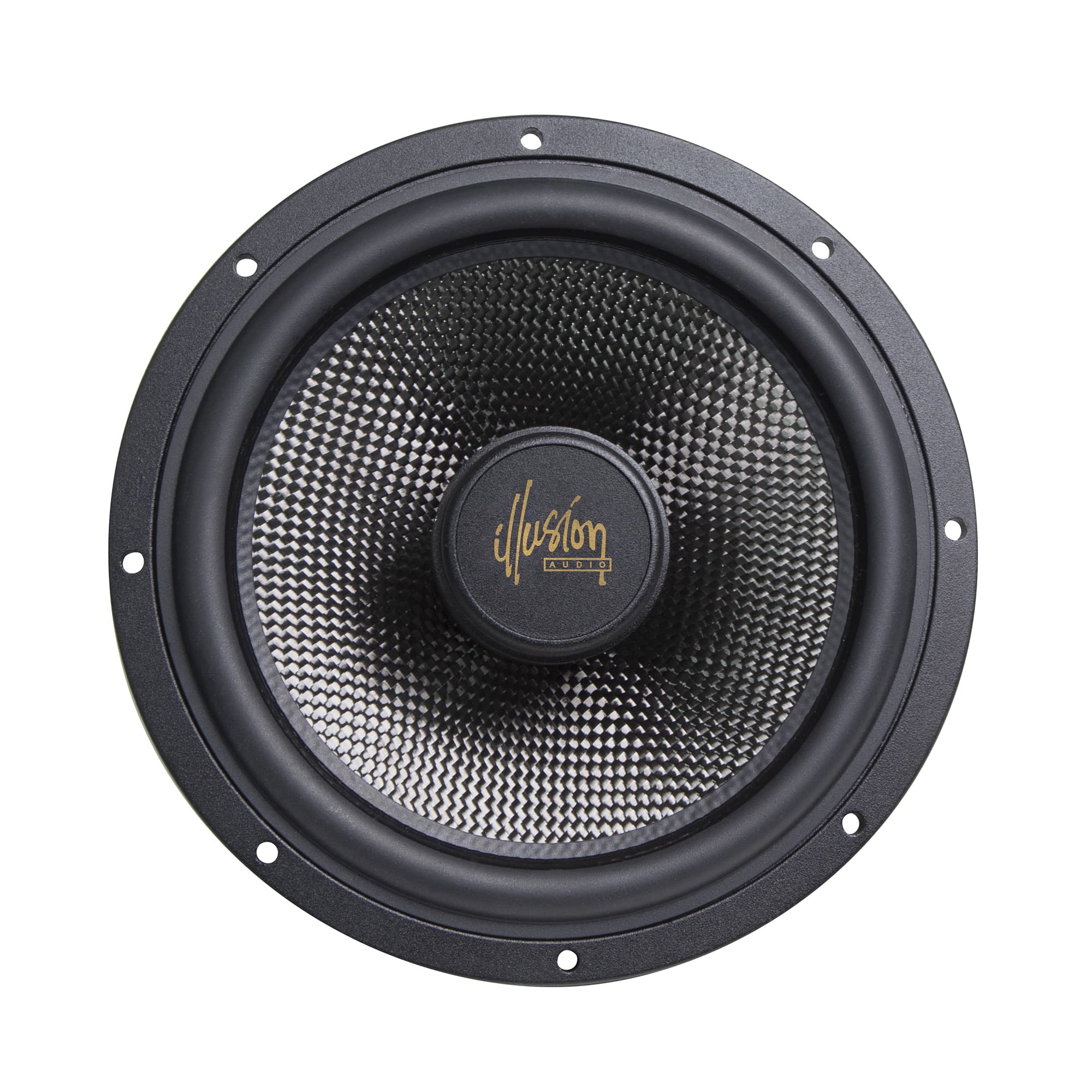

Carbon Series 8-Inch 2-Way Component Kit
SPECIFICATIONS

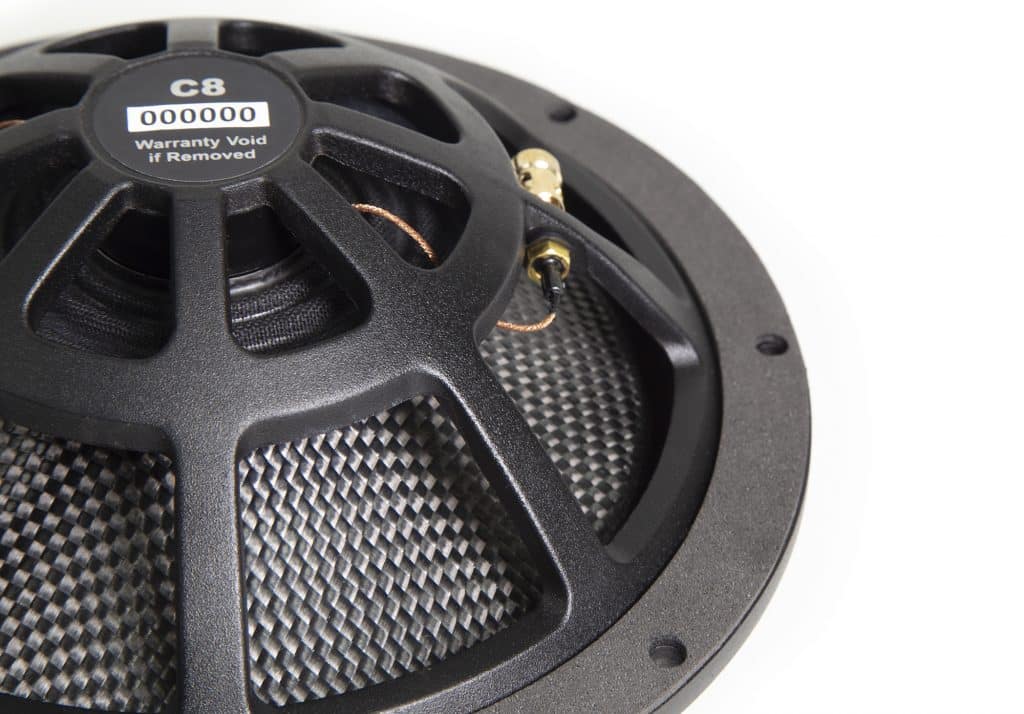

MIDBASS
Free Air Resonance: 50 Hz
Nominal Impedance: 4 Ohms
Sensitivity 2.83 V @ 1 meter: 90
Outside Diameter: 209mm (8-1/4in)
Mounting Hole Diameter: 179mm (7in)
Mount Depth: 55.5mm (2-3/16in)
Maximum Linear Excursion: ± 7.9 mm
CROSSOVER
Bi Amp 12 dB crossover
Tweeter overload protection
Dimensions: 131 x 84 x 38 mm
TWEETER
Component Tweeter
25 mm Beryllium Copper
4 ohm
Outside Diameter: 48.2 mm
Mount Hole: 43.5 mm
Mount Depth: 24 mm
DOWNLOAD
Specification Sheet
Product Manual
Catalogue
